10 Steps to Understand Train Air Brake System
Train Air Brake System: 10 Steps to Understand

Although train air brake systems involve a lot of subject matter to wrap one's brain around, they are one of the most critical mechanical things to know about for safety on the railroad. The mechanisms involved with train air brakes are considered a marvel, permitting the stopping of large machines, although not with the same impression as most. Thus, the intention of this blog post is to clarify the train air brake system and explain how this system works in ten simple steps.

We'll start with the basics of how brakes are applied using compressed air, why air is used instead of steam or vacuum, and the intricacies of air compressors. We will trace the development of braking systems from simple, straight air brakes to more complex automatic air brakes. We will learn subtleties along the way, like brake rigging, control valves on train cars, and how brakes are coordinated in double-headed locomotives. Whether you are a rail enthusiast, a student, or simply curious, this guide will take you step-by-step through the fascinating world of train air brakes. So, let’s get started and uncover the secrets of how trains safely come to a stop.



The Basic Need for Train Brakes

The Basic Need for Train Brakes

Trains are powerful machines that can carry enormous loads over very long distances. One of their critical challenges is stopping efficiently and safely. Where a car comes to a stop relatively quickly, a train takes a considerable distance because of its weight and momentum. This is the basic need to stop, which forms the base for train air brake systems.

It's, therefore, imperative at this introductory step to appreciate the basic reason that calls for a train brake's relevance. A moving train would, at high speed, have lots of momentum, which would be hard to bring to a stop by immediate cutting of power. This means that a brake should be able to apply adequate friction on the wheels to slow it down gradually but efficiently.

The train braking systems are complex by design because a train with many cars has to brake simultaneously and uniformly to avoid accidents like derailments. That is why developing a reliable and strong air brake system meant much for the railway since it would allow trains to stop in a never-seen way. In the next few steps, we will examine in detail how this system works—from the very basics of how air is compressed to some of the more advanced stuff. Underpinning it all, however, is one simple yet crucial requirement: trains must be able to stop safely and reliably.

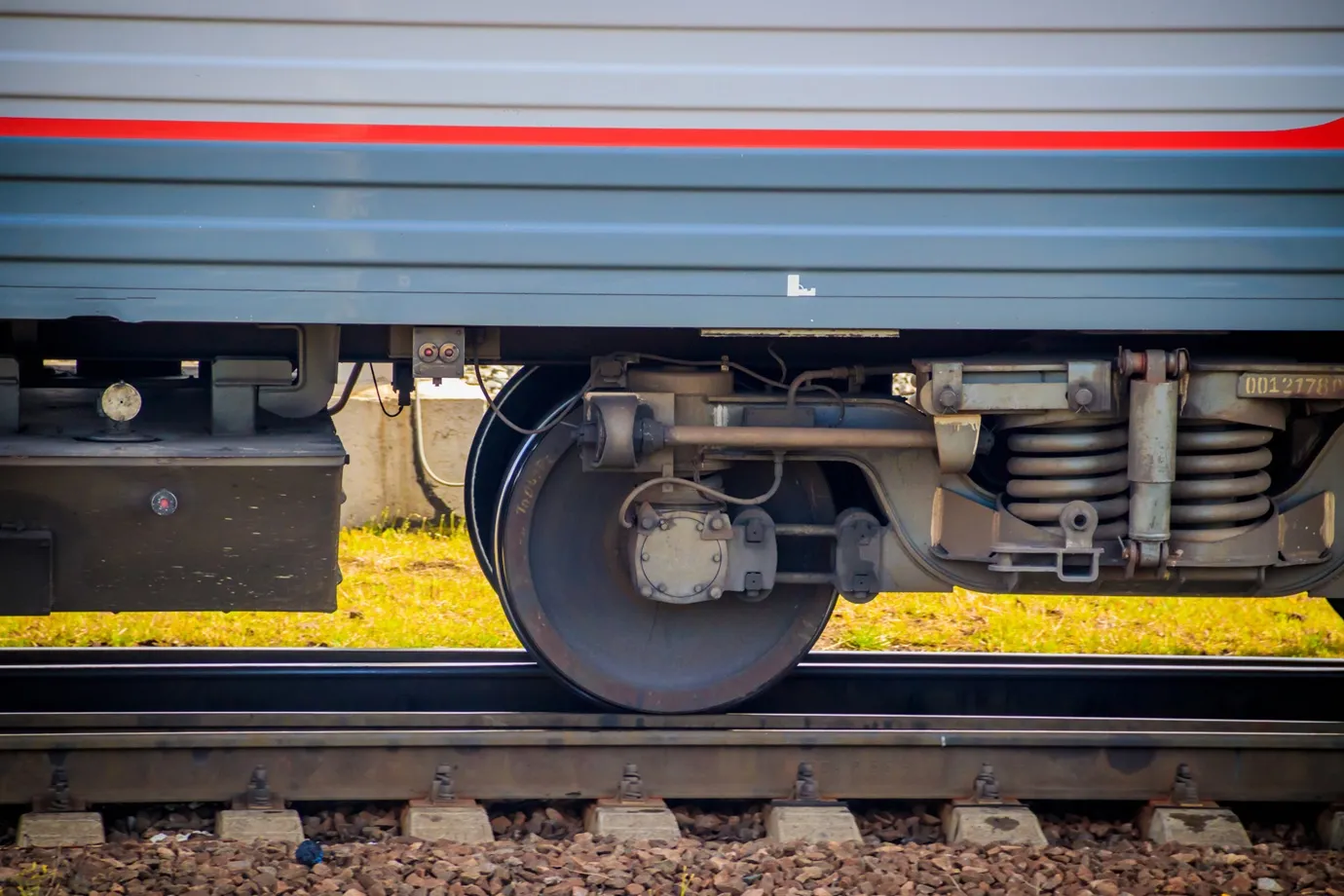

Step 1: The Mechanics of Air Brakes

The air brake system is an extremely simple yet genius idea. It uses compressed air to slow the train down and eventually come to a stop. To begin understanding the system, one has to recall the major components at work: the wheel, the brake shoe, the lever, and the piston rod.

When a train needs to brake, compressed air is introduced into a piston cylinder, forcing the piston to move. This movement triggers a series of mechanical actions, starting with the piston pushing a rod. The rod, in turn, pivots a lever, which presses a brake shoe against the wheel. The friction generated by this contact between the brake shoe and the wheel slows down the train.

But why use air? Air is chosen for both reliability and efficiency. Unlike steam, which might condense into water to cause problems in the brake system, the air always acts predictably. Its pressure is also more easily and finely controlled, allowing more efficient, gradual braking along the entire train.

This simple assembly is the foundation of all the more advanced systems developed over time. The contact of the brake shoe and the wheel forms the necessary friction needed to slow down the train, making this a core activity in braking. Since all the cars are covered by applying the brakes simultaneously via the brake pipe, it ensures gradual and controlled slowing of the train, thus avoiding accidents and ensuring the safety of passengers and cargo.

In the steps to follow, we will see how this basic mechanism is augmented and controlled over the length of a long train so that every car brakes simultaneously and with great efficiency. It's really here, though, where the true complexity and brilliance of the train air brake system come into play.

Step 2: Why Use Compressed Air?

Compressed air is literally the lifeblood of any working train braking system around the globe. Compressed air gives the implicit power to rule out the whole process, and one actually starts understanding why air is used, not some other options like steam or vacuum, to gain their newfound appreciation for the efficiency of the modern train brake system.

Compressed air is chosen due to its steadiness and stability. Steam is always likely to condense to water once it cools, and, in return, the possible system blocks and renders it ineffective; the air is dangerous and does not have such potential hazards, but it is stable and reliable throughout the entire braking process. Air is also very simple and most convenient to create and handle. In the systems, compressors on the train engines are consistently ready to generate and keep the obliged air pressure applied in brakes at any time.

Apart from this, the force of braking can be controlled in compressed air. In this process, the rise and fall of pressure for more and less generation of brake power are made possible in this system, which is hence said to be versatile, withstanding many conditions. This becomes very much true in the case of a long train whose needs for braking differ along its length.

In other words, compressed air is the lifeblood of the train braking system because it allows for a controlled and dependable way of slowing down and stopping the train. Moving on, let us see how this air is controlled and distributed throughout the entire train to ensure effective braking in every car.

Step 3: The Cross-Compound Air Compressor

The cross-compound air compressor forms the most important element in any steam locomotive's braking system, that part of the train that generates air pressure to actuate the brakes. A cross-compound compressor is an intriguing piece of engineering that uses the power of steam to create compressed air for a train's brakes.

A cross-compound compressor works with steam-driving two pistons in a coordinated sequence. The process initiates when steam enters at the top of the compressor, forcing down a piston. This piston is connected to another one that is larger in size. When the smaller piston moves down, the air from the atmosphere is compressed in a chamber with a lower pressure. Then, it gets transferred to the large one for further compression and into a high-pressure form to be applied to the braking system.

The two-stage process offers the advantage of more efficient generation of high-pressure air. This way, higher pressures can be reached without overloading a single piston so that this system will not fail on train brakes.

Other than the compression process, these compressors feature control valves that control the steam flow and ensure the correct sequence of piston movement. Condensate handling systems and methods to address the water condensate forming once the steam is cooled assure its non-interference with the compressor's operation.

The compressed air produced by the cross-compound compressor is stored in the locomotive's main reservoir, ready to be used to apply the brakes whenever necessary. A necessity of its time, during the steam locomotive era, such a compressor provided a foundation for the more advanced air brake systems to be built on.

Step 4: Automatic Air Brakes

While the automatic air brake surely is an important principle of train safety, unlike earlier systems where the air was directly applied from the locomotive's reservoir to the brake cylinders, a better and more reliable method is used in these automatic air brakes. This ensures that, in case of a failure, it automatically engages to provide a very important safety net for the whole train.

In an automatic air brake system, compressed air is piped through a brake pipe the entire train length, connecting each car. Each car has its own small air reservoir, charged by the air in the brake pipe. When the brake pipe holds an unvarying pressure, the brakes are off. However, when the pressure in the brake pipe falls—either upon the engineer's command or by a failure in the system—the reservoir on each car releases air into its brake cylinders to apply the brakes.

This is an important automatic response to maintain control, especially in long trains where the braking should be uniform in all the cars. The system has been designed so that if there is some problem in the train, be it a broken brake pipe or a sudden loss of pressure, the brakes will automatically apply and bring the train to a safe stop.

This step details how the automated air brake system adds to the chain of security devices that make train travel much safer and more reliable. We will then go into detail about how this system interfaces with the mechanical rigging of the brakes to provide effective braking actions throughout the train.

Step 5: Brake Rigging – Translating Air Pressure into Braking Force

After compressed air is generated and stored, the next big job is to translate that air pressure into physical force, slowing the train down or bringing it to a stop. That is where brake rigging steps in—a system of levers, rods, and mechanical linkages that makes sure the force of braking is properly applied to the train wheels.

Typically, compressed air is applied to a brake cylinder, pushing out a piston. The motion is then transferred through a line of levers and rods, multiplying the force the piston provides. This was a carefully designed lever system to apply maximum force so that even slight air pressure could generate enough friction to slow the train. Attached to the rigging, these brake shoes press against the wheels with high pressure. This creates friction between the brake shoes and wheels to slow a train down. This system must be adjusted because slack or wear of components in this assembly leads to reduced braking efficiency.

This means that brake rigging has been installed to make up for wear in the brake shoes and wheels by having what is referred to as a slack adjuster, which assures that the brakes will stay in proper alignment and be effective over some time. The brakes' rigging is a mechanical marvel that transmits the 'invisible' power of compressed air into the very 'tangible' force that brings a moving train to a stop. In the next step, we will see how different air brake systems have been developed to improve this process even further.

Step 6: Evolution of Air Brake Systems – From Non-Self-Lapping to Modern Control

The systems of the air brakes were continuously increasing in complexity and efficiency with the advent of train technology. One of the most important developments in this process was the shift from non-self-lapping brake systems to more modern automated ones, which provide larger control and safety over the locomotive.

Early-day trains used non-self-lapping brake systems, like the A1 and G6 brake valves. These relied on the engineer to manually adjust how much air pressure was released into the brake pipe. It was a very labor-intensive process and left room for human error. The engineer had to move the brake handle to a service position quickly, cut down the pressure of the brake pipe by a specified amount, and then quickly return the handle to a "lap" position, at which point the pressure would be held. This manual process was time-consuming and required a high order of skill.

With improved technology, more advanced systems such as 6ET and 26L were developed. Such systems introduce the self-lapping facility, where the brake will automatically hold the required pressure without requiring an external hand to adjust the brakes continuously. The engineer would only need to set the level at which the brakes should apply, and the system would maintain it. This made the system much more user-friendly and safer.

The switch from non-self-lapping to self-lapping in braking systems was a sea change in train safety, paving the way for more precise and reliable braking. In the following step, we shall explain how the different control valves vary and how they contribute to making modern trains much safer and more efficient.

Step 7: Self-Lapping Brakes – Enhancing Precision and Control

The innovation of self-lapping brakes was revolutionary for control and safety in train braking systems. Where previous systems relied on constant readjustment by hand, automation was integrated into the process with self-lapping brakes to provide more exact and consistent braking.

The engineer can preselect an application on self-lapping brakes, such as the commonly used 26L system, and then the system automatically manipulates air pressure to hold that level. This means that, instead of manually controlling pressure to the brake, the engineer moves the brake handle to the desired position, and the system does the rest. This is easier, reduces the potential for human error, and makes for much safer, more efficient train operations.

Self-lapping brakes provide controlled and gradual braking. The system's operation—the process starting when the engineer moves the brake handle—continuously monitors and regulates the air pressure to provide smooth, even application to all cars in the train. More importantly, this is applied to long trains requiring homogeneous braking to prevent derailment or any other problem.

The self-lapping feature improves the general responsiveness of the braking system, and engineers can adjust the braking force as needed. This is the huge improvement for which most older systems gave way, leading to the modern, highly automated train braking systems we rely on today.

Step 8: Control Valves on Train Cars

With the development of the braking system, so did the components that made it work. Among those, train car control valves ensure proper application of the brakes and proper equalization throughout the train. They evolved in complexity over time for the safety of train operation and its reliability.

In the early days, simple control valves, primarily through the K triple valves, compared pressure in the brake pipe with pressure in the reservoir to measure how much braking force to apply. However, with improving train technology, more complex control valves found their way into production due to increasing safety and efficiency needs.

Modern control valves, such as AB and ABWX types, do more than compare pressures; they also monitor the rate at which the brake pipe pressure drops. This added feature makes the system smart in responding to varying braking scenarios. For example, if the pressure drop were to indicate an emergency, such advanced valves could easily dump all the air from the reservoirs into the brake cylinders to ensure rapid and full application of the brakes in such a scenario.

These advances in control valve technology will be important in maintaining the same braking power within each train's cars, certainly in lengthy or heavy trains, where uniformity is the key to preventing accidents. With these smart valves, braking systems can also react dynamically to improve safety and train performance.

Step 9: Coordinating Brakes in Double-Heading – Managing Multiple Locomotives

This could also mean that more than one locomotive is required to pull a heavy or long train. In train operations, this practice is called double heading. In this case, coordination in the braking systems of the two locomotives would be required so that they work seamlessly together. Managing this coordination is critical to maintaining control and safety throughout the journey.

In traditional double-heading setups, the lead locomotive primarily controls the braking system. An air compressor on these locomotives feeds the required air pressure into the brake pipe, which runs along the entire length of the train. While it still provides power to move the train, the second locomotive essentially acts like a regular car in terms of its interaction with the brake—it doesn't control the pressure within the brake pipe but responds to signals from the lead locomotive.

To prevent conflicts in the brake system, the brake stand on the second locomotive is "cut out" from the brake pipe control; that way, only the lead locomotive controls air pressure in the brake pipe. Many special whistle signals are employed between the locomotives to indicate when the train's control is being transferred or when an adjustment is required.

This system allows a train to utilize the power of several locomotives running in front by providing uniform and controlled braking. Proper coordination in double-heading is essential because miscommunication or delay in applying brakes may create dangerous situations, especially on complex or steep terrains.

Step 10: Positive Train Control – The Future of Train Braking

With train technology constantly improving, PTC introduces a new dimension to railway operation in terms of safety and efficiency. PTC is an advanced system that combines with the train's braking system to monitor and control the movement of trains; this reduces the risks associated with human error and maximizes safety.

PTC works through sensors, GPS, and communication systems to track the train's real-time speed, location, and movement. If the system detects any possible danger—whether the train is speeding, has come close to the stop signal, or has entered a hazardous area—it can automatically apply the brakes to avoid a mishap. This automated response ensures adherence to safety protocols, even if the engineer is slow to react or unaware of the situation.

Older locomotives interface through the existing air brake system with magnet valves, which apply the brakes in either a penalty or emergency mode. PTC can communicate directly to an electronic air brake system on more modern locomotives and implement more precise and controlled braking actions.

Integrated with train braking systems, railways can operate with a much greater degree of safety, avoiding many potential collisions, derailments, and other mishaps. This technology is becoming the norm on so many rail networks that it will soon be the standard everywhere; it is the future of train safety and control.

Where PTC in the train braking system used to be about how well it could take commands, it is now all about ensuring passengers' and cargo's safety by preventing accidents. For this reason, this last point of view in our tour through train braking systems presents the pinnacle of technological advancement in rail transport.

Conclusion

The journey through the intricacies of train air brake systems reveals how vital these components are to railway safety and efficiency. From the basic need to stop a massive, moving train to the sophisticated technology of Positive Train Control, each step in the evolution of air brakes represents a significant advancement in engineering. These systems, powered by compressed air and refined through innovations like self-lapping brakes and advanced control valves, ensure that trains can be controlled safely, even under the most challenging conditions.

Understanding these systems highlights the complexity of train operations and underscores the importance of continual technological improvements. As rail transport continues evolving, so will the systems that keep it safe. The integration of modern technologies like PTC showcases the future of railway safety, ensuring that the trains of tomorrow are even more reliable and secure than today's.
