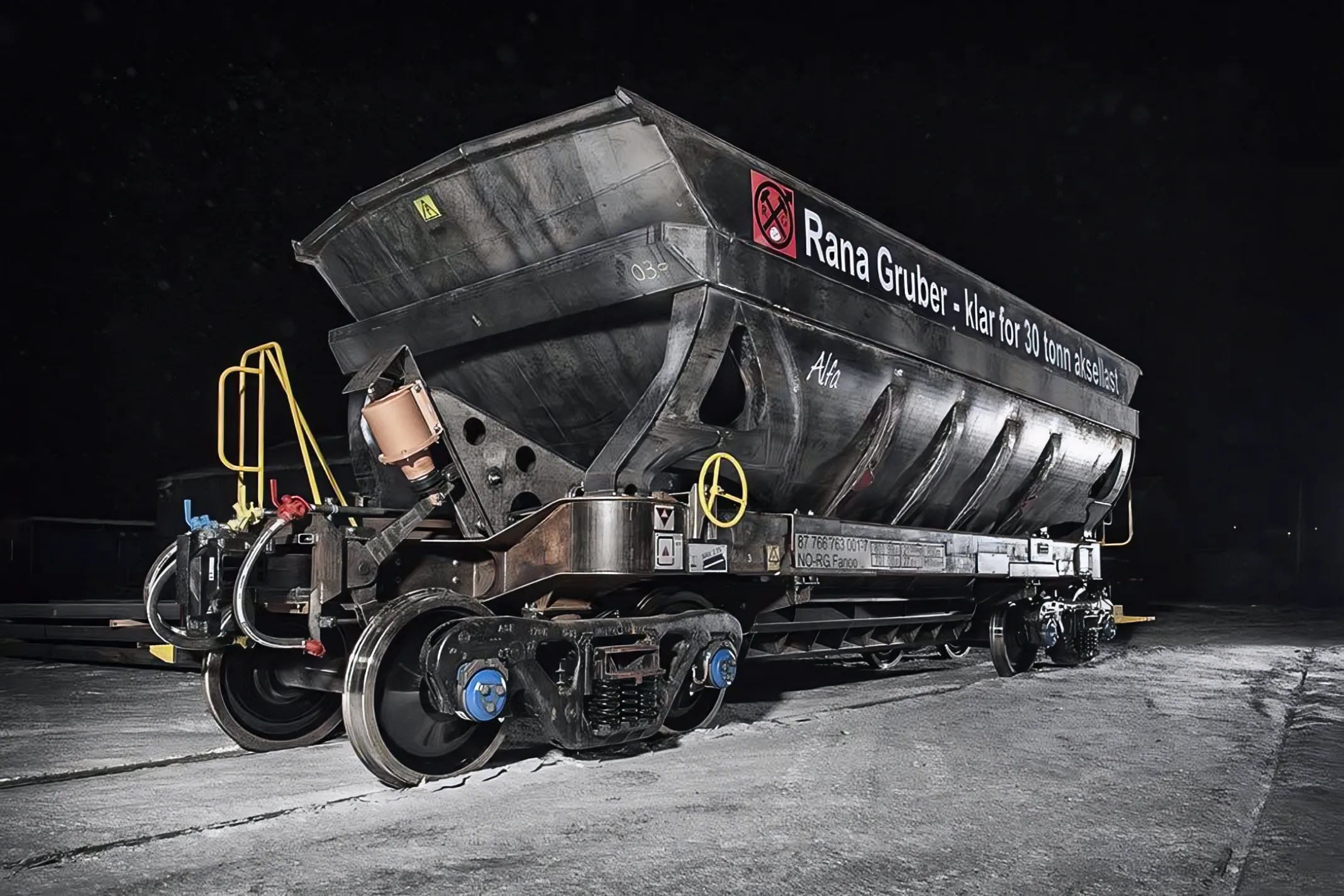

Bottom Dumper (BD)
Load and unload your commodities fast and straightforward. Our bottom dumpers would be the best option for significantly fast loading and unloading of solid bulk commodities, especially for ore and mining.
OVERVIEW
Bottom dumper freight wagons are hopper wagons primarily used for ore transportation. They are equipped with a hopper-shaped body with an open or covered top and discharged doors on the bottom. Due to their unique design, bottom dumpers are used to transport solid bulk ore, such as coal, ballast, aggregate, sand, dust, rock, etc. Loading and unloading in these wagons is very fast and straightforward, without requiring any special equipment.
We provide efficient bottom dumpers designed with up to 30 tons of axle loads and a significantly high unloading capacity, up to 20,000 tons per hour, allowing super-heavy ore and mining transportation as fast as possible. Their self-unloading mechanism also offers a cost-effective and straightforward operation.
ADOR’s bottom dump railcars involve a high Average Annual Wagon Speed (AAWS), which refers to the average speed a wagon moves over a year. In addition, we provide fully customizable bottom dumpers that can be adapted to the project’s requirements, from the wagon’s structure to the operational features.
Bottom Dumper in Brief
- ROBUST AND CLIMATE TESTED
- CONTINUOUS DISCHARGE
- MODULAR CONSTRUCTION
- LOW-COST UNLOADING STATION
- SUITABLE FOR EASY UNLOADING
- DISCHARGES UP TO 20,000 TONNES/H
SPECIFICATIONS
Our bottom dumpers are engineered to meet the specific needs of our clients, offering customizable features and configurations.
Listed below are the general technical specifications. For the complete specifications in detail, please download the catalog at the bottom of the page.
All wagon types can be customized to fit your logistics preconditions. Such as axle loads, length, volume, loading profile, AAR, TSI, etc.
| Max axle load: 20 to 30 tonnes |
| Number of axles: 4 |
| Line load: 8 to 12 tonnes |
| Tare weight: 20 tonnes |
| Gauge: 1435 mm |
Gallery
Catalog
Please fill out the form to download the catalog:
Related Products
Helix Dumper
Continuous Discharge
Rock Dumper
Low-Cost Maintenance
Side Dumper
Low-Cost Unloading Station
Side Loader XL
Operated By Remote Control
Modular Wagon
Expanded Customer Base
FAQS
What is a Bottom Dumper Freight Wagon?
A bottom dumper freight wagon is a specialized railcar designed for the efficient transport and unloading of bulk materials such as ore, coal, and gravel. The Ador bottom dumper is engineered for high-capacity continuous discharge, making it ideal for industries requiring rapid and reliable material handling.
Key Features of the Bottom Dumper
High-Capacity Continuous Discharge
- it can discharge up to 20,000 tonnes per hour, ensuring quick and efficient unloading of bulk materials.
Robust Construction
- Built with ultra-high-strength hot-rolled steel, the wagon is designed to withstand harsh conditions and heavy loads, ensuring durability and longevity.
Modular Design
- The modular construction allows for easy maintenance and replacement of parts, reducing downtime and maintenance costs.
Climate Resilience
- it is tested and proven to operate in extreme temperatures ranging from -40°C to +60°C, making it suitable for various climates.
How Does a Bottom Dump Railcar Work?
The bottom dump railcar features hoppers with doors at the bottom that open to release the material directly onto the ground or into a receiving pit. This design allows for even spreading of materials and efficient unloading.
Benefits of Using a Bottom Dumper Freight Wagon
- Efficiency: The high-capacity discharge system ensures quick unloading, reducing turnaround times.
- Durability: The robust construction and high-strength materials ensure the wagon can handle heavy loads and harsh conditions.
- Cost-Effective: The modular design reduces maintenance costs and downtime, providing a cost-effective solution for bulk material transport.
What materials can be transported using a bottom dumper freight wagon?
it is suitable for transporting a variety of bulk materials, including ore, coal, gravel, and other aggregates.
How is the Ador bottom dumper maintained?
The modular design of the bottom dumper allows for easy maintenance. Most components can be replaced within two hours by a team of two people, minimizing downtime.
What are the specifications of the bottom dumper?
- Max axle load: 20 to 30 tonnes
- Line load: 8 to 12 tonnes
- Number of axles: 4
- Wagon length: 10 to 12.5 meters
- Gauge: 1435 mm
