Brake Testing Equipment for Rolling Stock: Ensuring Safety Through Precision Testing

In the railway sector, the brake system is arguably the most critical safety component of any rolling stock vehicle. Whether you’re dealing with locomotives, freight wagons, metro units, or high-speed trains, ensuring the proper functionality of every brake component is not optional—it’s a necessity. Railway depots and manufacturers rely on advanced brake testing equipment engineered for accuracy, repeatability, and compliance with international standards to meet this demand.

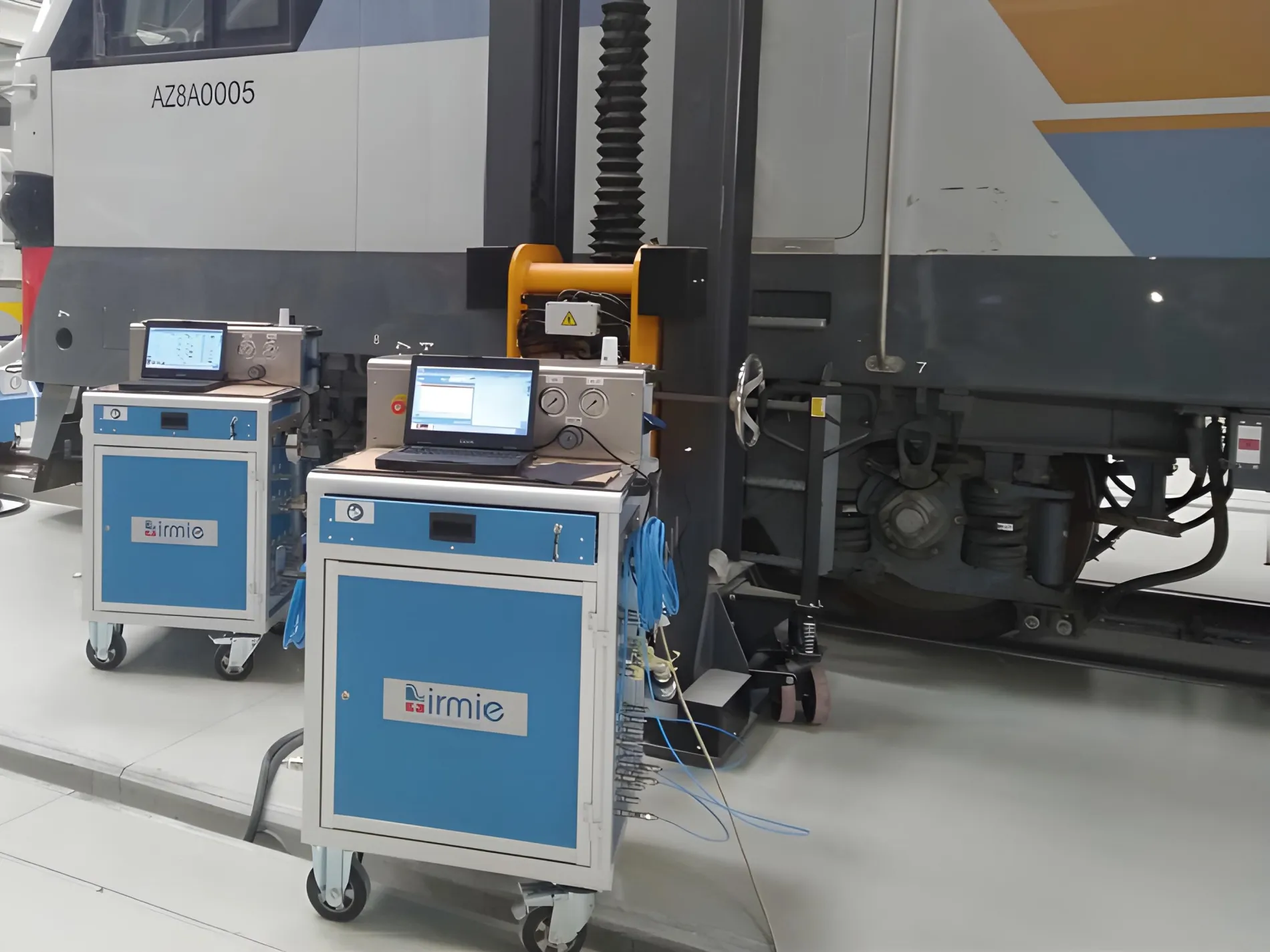

Brake test benches and mobile brake test units are designed to simulate real operating conditions in a controlled environment. This allows manufacturers and maintenance teams to assess performance, verify repairs, and confirm compliance with regulations before the rolling stock returns to operation.

In this article, we will explore what railway brake testing equipment is, why it’s essential, the different types available, and how to select the right solution for your needs.

What Is Railway Brake Testing Equipment?

Railway brake testing equipment refers to specialized systems designed to evaluate the functionality, air-tightness, responsiveness, and performance of train braking components. These components include brake cylinders, distributor valves, brake panels, air compressors, and complete train brake circuits.

The equipment is typically used in:

• Railway manufacturing facilities
• Maintenance depots
• Overhaul centers
• Certification laboratories

Using rail vehicle brake test systems, technicians can conduct functional tests, leakage assessments, response time evaluations, and electronic diagnostics on all relevant components. These systems support both manual and automatic testing modes and usually offer a PC-based interface with integrated data acquisition and reporting features.

Why Is Brake Testing Equipment Important in Rolling Stock Maintenance?

Testing ensures that all brake components meet operational and safety standards. A failure in any brake-related part can lead to operational delays, increased wear, or, in worst-case scenarios, serious accidents. By using dedicated train brake system testing solutions, operators gain measurable assurance that:

• The component functions as intended under load
• Pneumatic or electrical systems meet response requirements
• No leaks or deviations exist in the system
• Components meet national or manufacturer-specific standards (e.g., UIC 540, 543-1)

These checks support not only safety and compliance but also data-driven preventive maintenance and life cycle management.

Types of Brake Testing Equipment Used in Railways

Brake test systems can be classified by their scope and function. Some are designed for individual components, while others evaluate the system holistically.

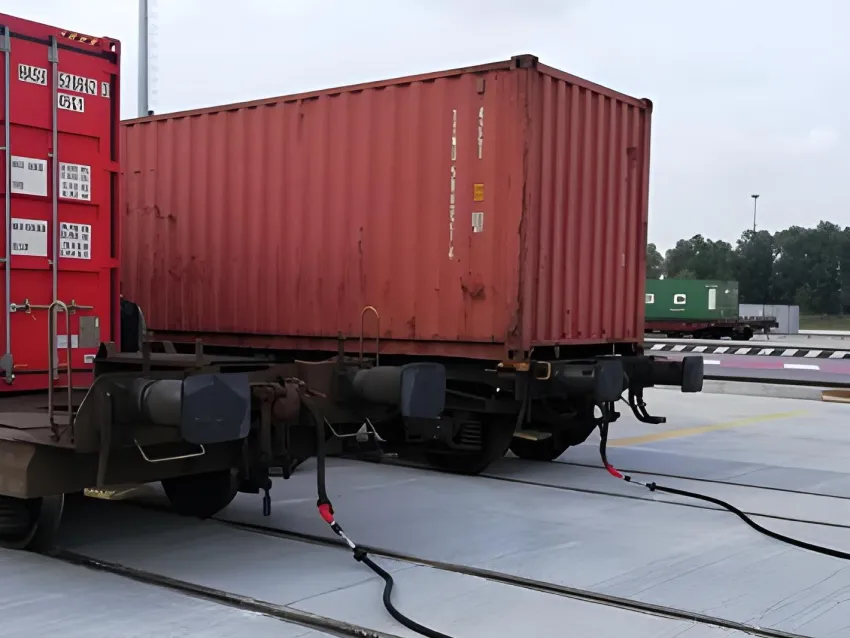

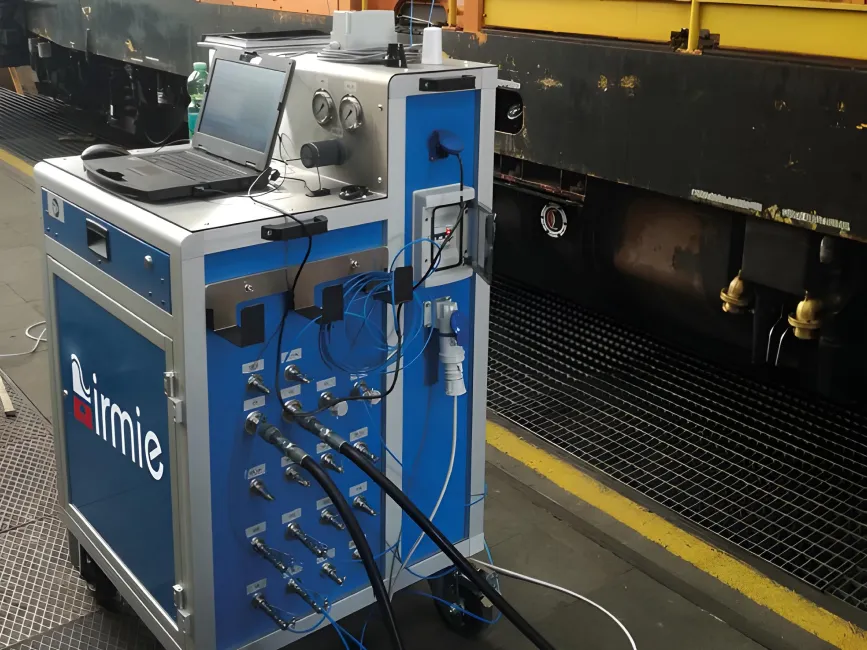

Mobile Brake Testing Units

A Mobile Brake Testing Unit (MBTU) is used to assess the braking systems of entire trains, wagons, or blocked compositions. It is designed for portability and can operate independently from the locomotive. These units often feature:

• Automatic and manual operation modes
• HMI interface via Wi-Fi-connected PC
• Data logging with test reports
• Compliance with standards such as UIC 540 / 543

MBTUs are especially valuable in field environments, terminals, and yards.

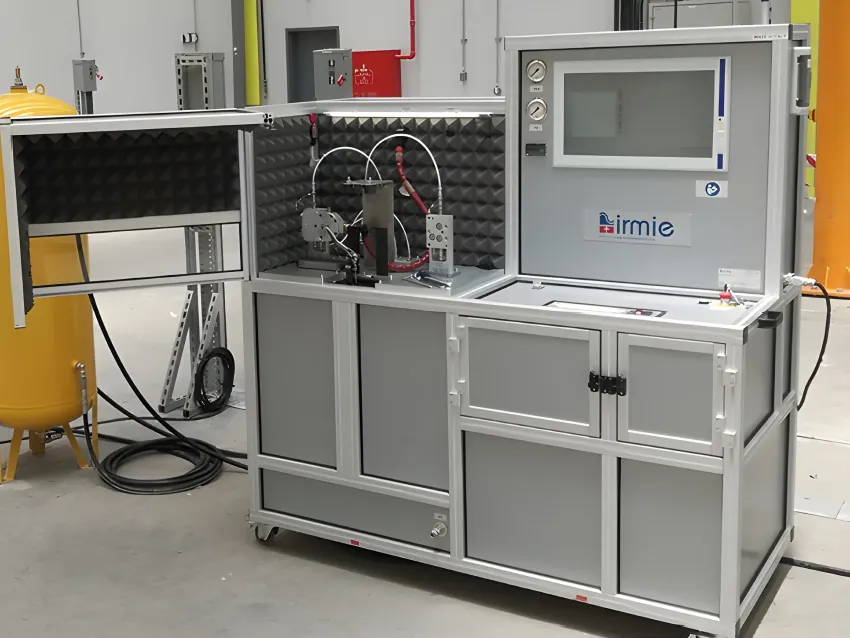

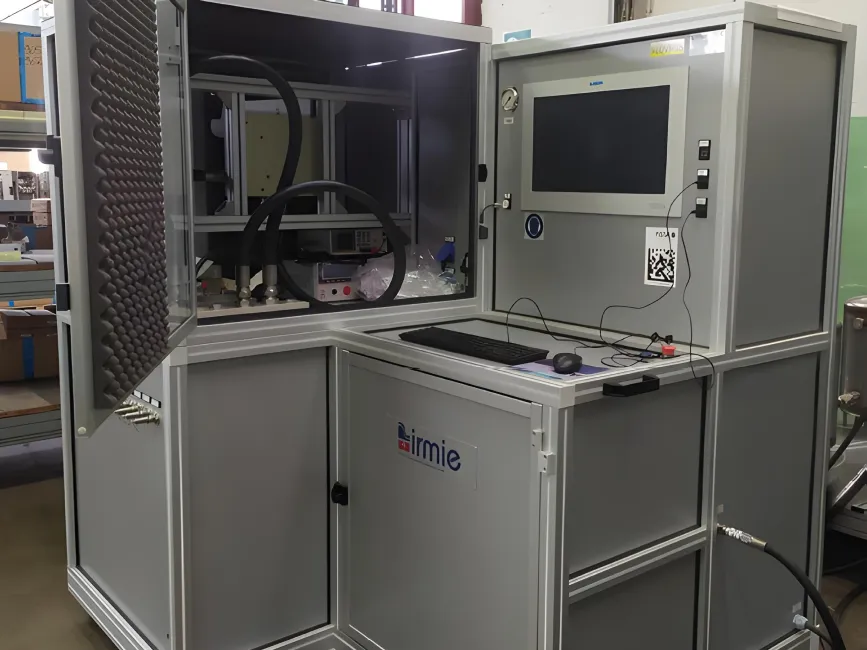

Brake Valves Test Benches

A Brake Valve Test Bench evaluates a wide range of pneumatic and electric valves, including antiskid, check, relay, and isolation valves. These benches are built with adaptable interfaces and can simulate real pneumatic environments, ensuring the valve’s response, tightness, and functionality are validated.

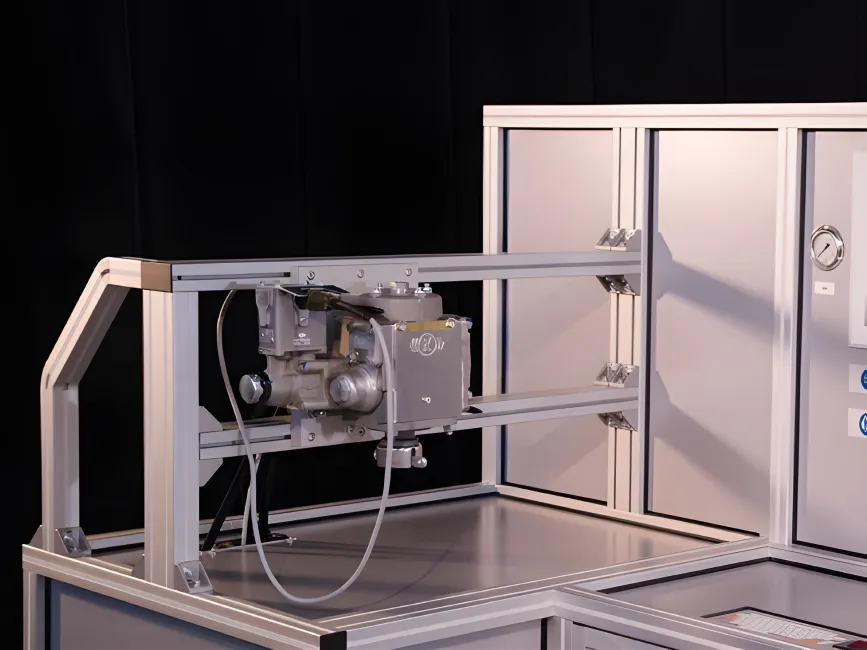

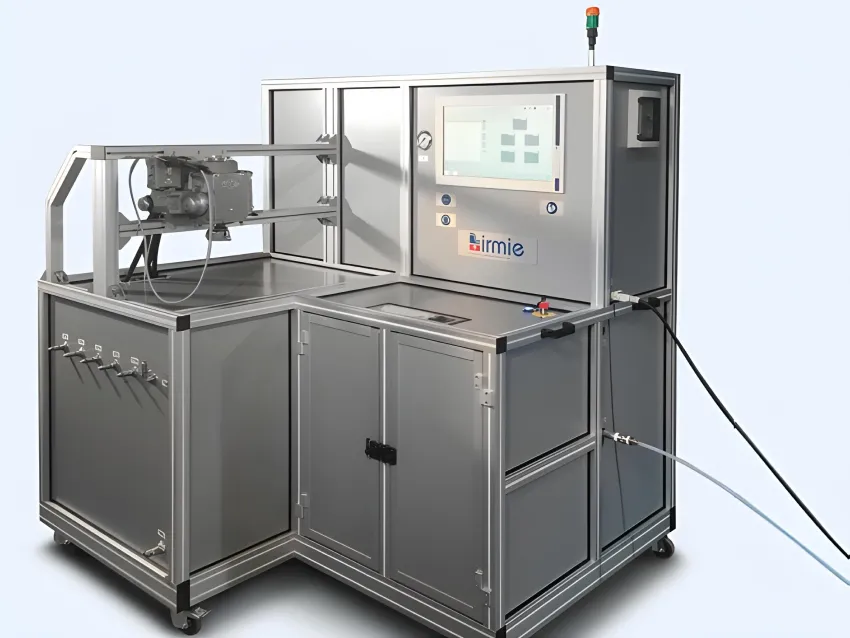

Distributors Test Benches

These benches are used to test distributor valves from various manufacturers. Distributor valves play a key role in managing air flow during braking and releasing sequences. Leakage tests and functional tests are typically automated and results are stored digitally.

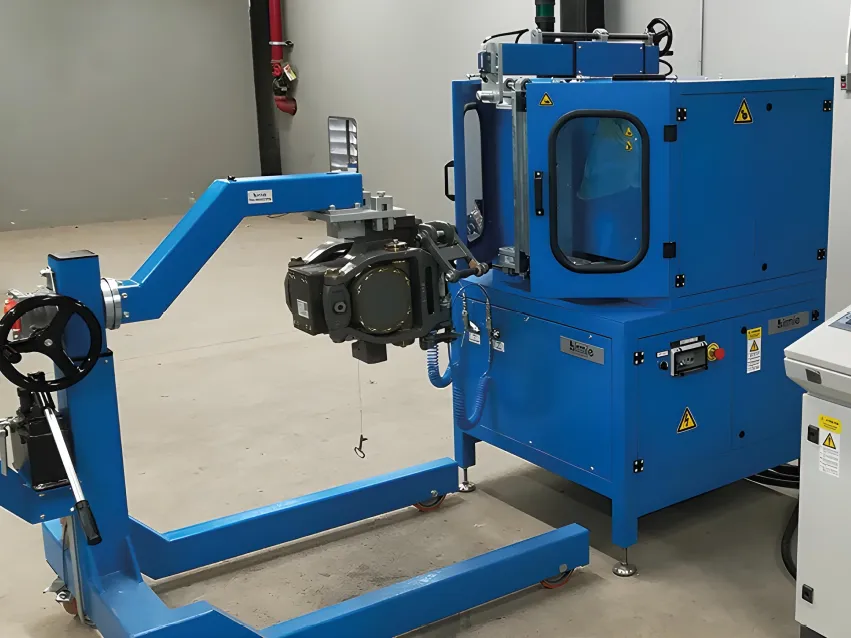

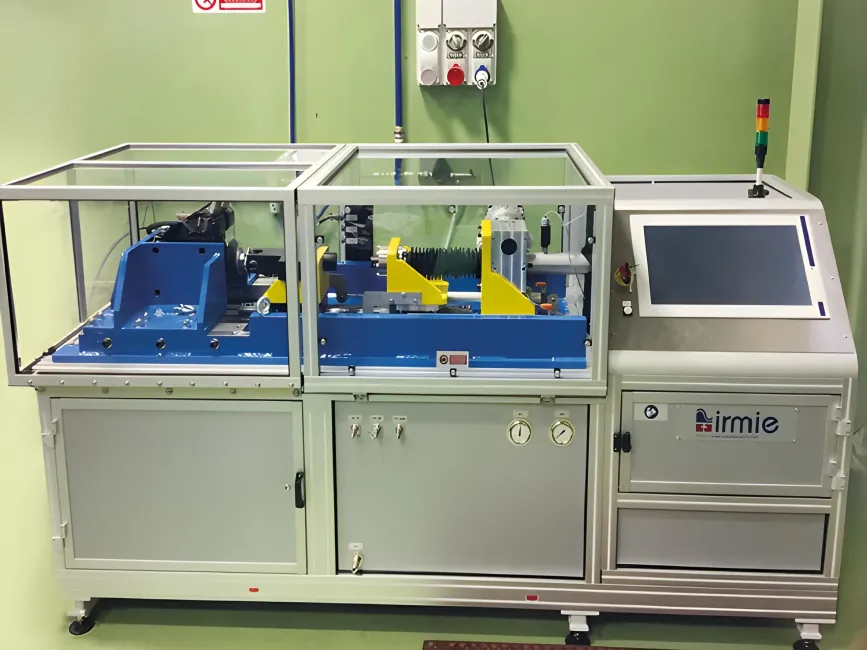

Brake Cylinder Test Benches

Brake cylinder benches are built to handle both cylinders with and without callipers. These devices ensure that air tightness and piston response are within the required tolerance. Accurate pressure sensors (typically 0.125 percent full scale) help validate performance under real operating conditions.

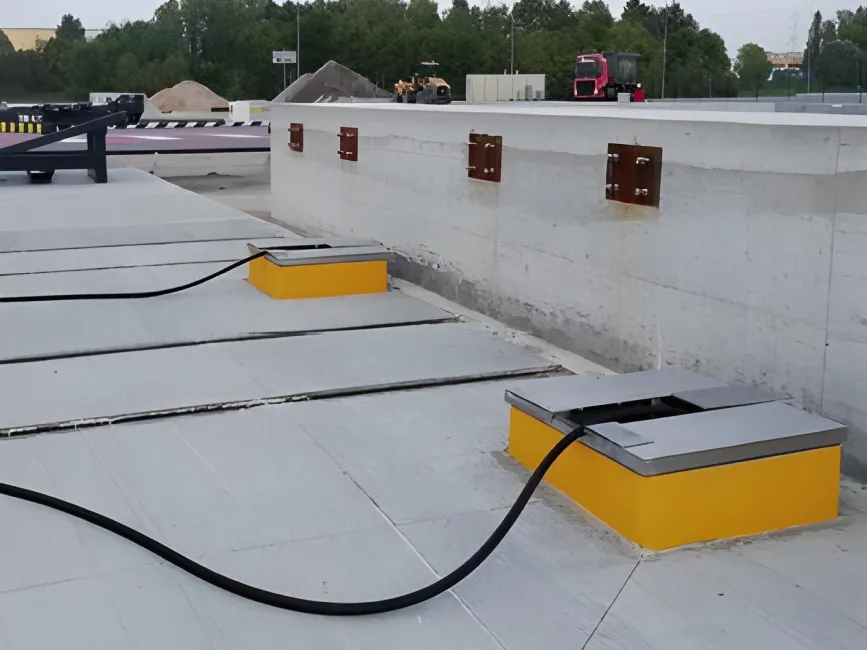

Centralized Brake Testing Systems

A Centralized Brake Testing System (CBTS) is ideal for managing full-train brake tests from a single operator station. These systems can conduct tests during the loading phase without requiring a locomotive. High air flow rates and pressure regulation ensure realistic simulations of braking behavior.

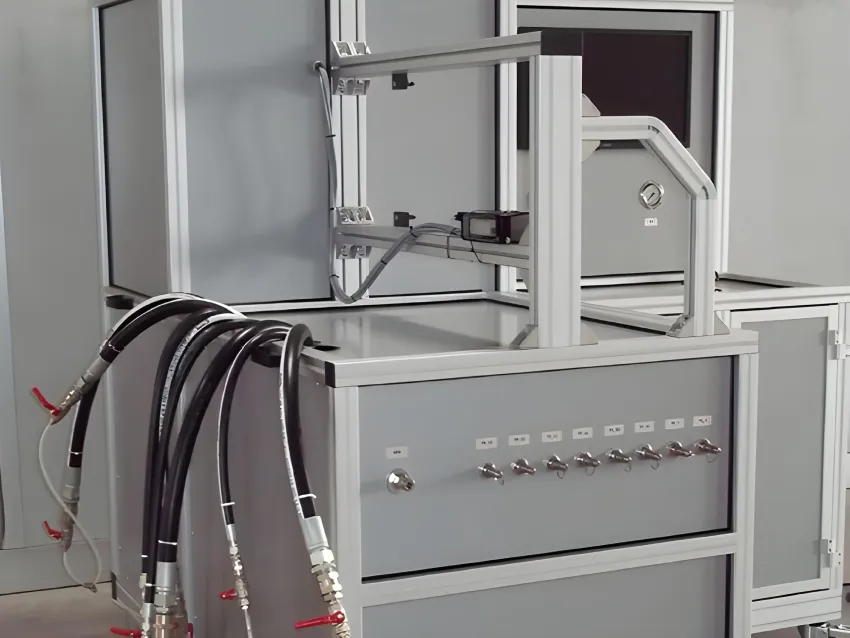

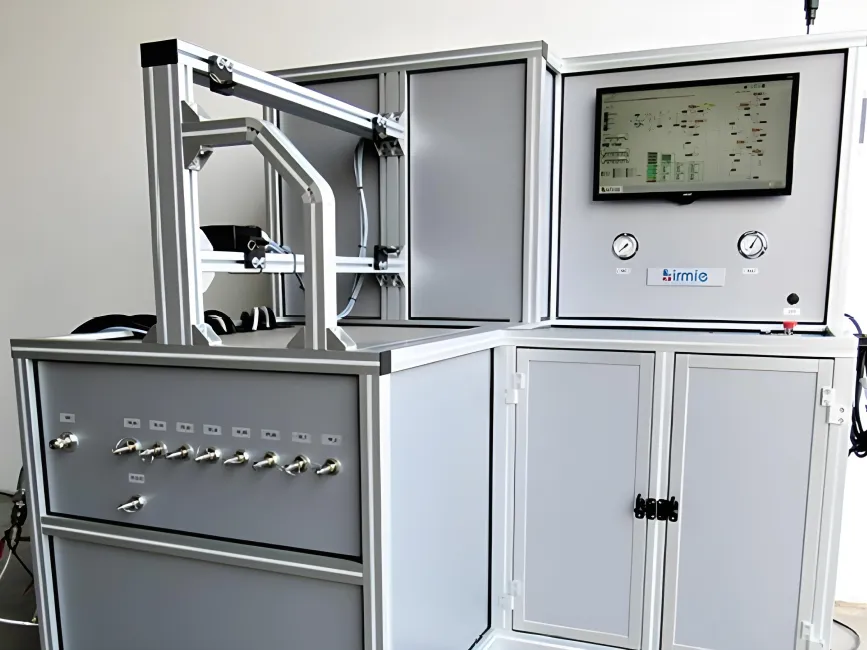

Brake Panel Test Benches

Brake panels combine several control elements into one interface. A Brake Panel Test Bench checks functions like electrical consumption, pneumatic reactivity, air tightness, and micro-switch response. These are typically used in workshop environments during component overhaul or after repairs.

Key Features to Expect in High-Quality Brake Test Benches

When evaluating brake testing equipment, certain features stand out as essential for long-term reliability and operator efficiency:

• PC-based control system with touchscreen interface
• Manual and automatic operation modes
• Pressure transducers with high accuracy (0.125 percent FS)
• Mechanical, pneumatic, and electric interfaces
• Barcode reader for component identification
• Remote diagnostics via GSM or Ethernet
• Automated report generation and result evaluation
• Compliance with customer-specific and international testing procedures
• Full traceability of test data and machine components

These features not only improve technician workflow but also reduce downtime and support quality audits.

How to Select the Right Brake Test System for Your Depot

Choosing the right system depends on several factors:

1. Component Focus
   Do you need to test brake valves, cylinders, panels, or the entire train system? Match the bench type to your operational needs.
2. Capacity and Volume
   Consider how many components or vehicles you need to test per day or week. This will influence whether you choose a mobile system, single-station bench, or centralized platform.
3. Integration Requirements
   Some depots need systems that integrate with CMMS platforms, fleet databases, or SCADA systems. Ensure the test bench supports the necessary protocols.
4. Environmental Conditions
   If testing will be performed outdoors or in harsh environments, ensure the equipment has appropriate IP ratings and robust housing.
5. Compliance and Certification
   Look for test benches certified by VIS or compliant with UIC and ISO standards to ensure regulatory compliance.

Conclusion

Investing in the right brake testing equipment for railways is not just about compliance—it’s about ensuring that every vehicle that leaves your depot is ready for safe operation. From component-specific benches to fully integrated test systems, there is a solution for every maintenance strategy and fleet type.

Whether you need to test brake cylinders, validate distributor function, or perform a full-train brake test, ADOR offers modular, scalable systems tailored to modern railway demands.
