Wheel Diameter Measuring Device
Measuring wheel diameter is straightforward with our innovative wheel diameter measuring device (MDD).
OVERVIEW

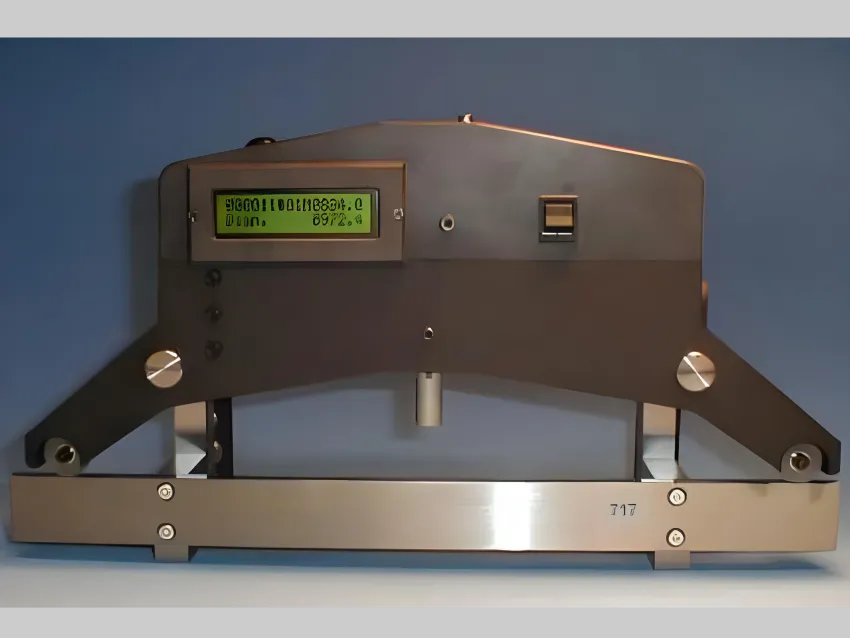

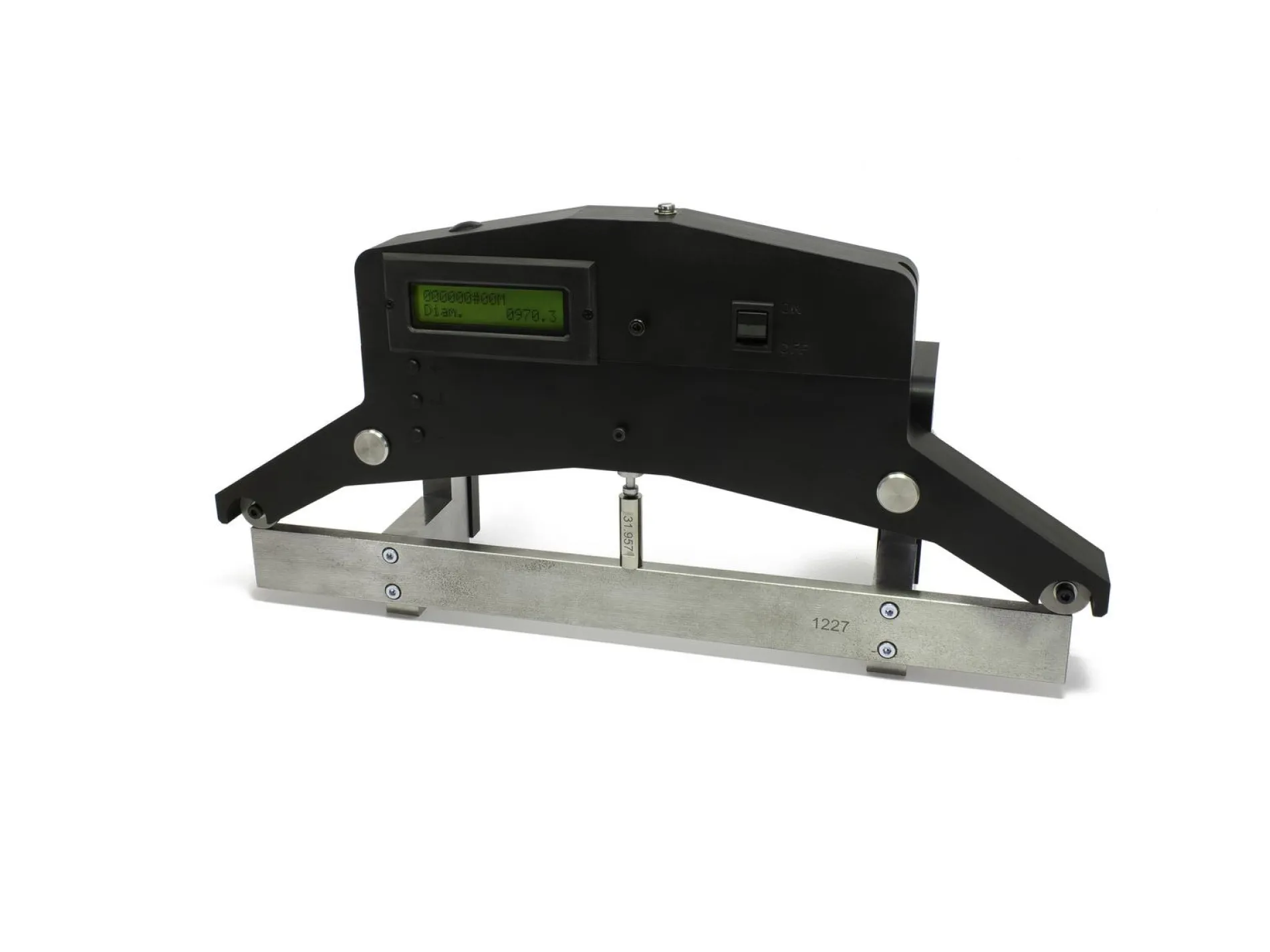

ADOR’s wheel diameter measuring device is designed to accurately measure wheel diameter at maximum speed and in the most straightforward way. This sophisticated device can be attached to locomotive or railcar wheels without removing wheelsets. Equipped with three rechargeable and removable batteries, our wheel diameter measuring device can operate for approximately 8 hours.
It also features a black-and-white LCD screen, which is completely visible even in daylight. Here are the key features of ADOR’s wheel diameter measuring device:
- Operating Temperature from -5 to +45 °C
- 0.2 mm Measurement Accuracy
- A Memory with 1800 Measurement Capacity
- USB Port for Data Transferring
SPECIFICATIONS
The Wheel Diameter Measuring Device is a contact-based, portable solution designed for fast and accurate measurement of train and railcar wheel diameters. Without requiring wheelset removal, the system attaches directly to the wheel using permanent magnets and performs a three-point measurement. It features a clear LCD display, long battery life, and USB data transfer, making it ideal for both workshop and field use.
The key technical specifications are listed below. For integration options and system configurations, please download the catalog at the bottom of the page.
| Measurement accuracy: ± 0.2 mm |
| Measurement range: 590–1255 mm (model dependent) |
| Display: Black-and-white LCD, daylight-readable |
| Battery life: Approx. 8 hours (rechargeable, removable) |
| Data storage & transfer: 1800 measurements, USB port |

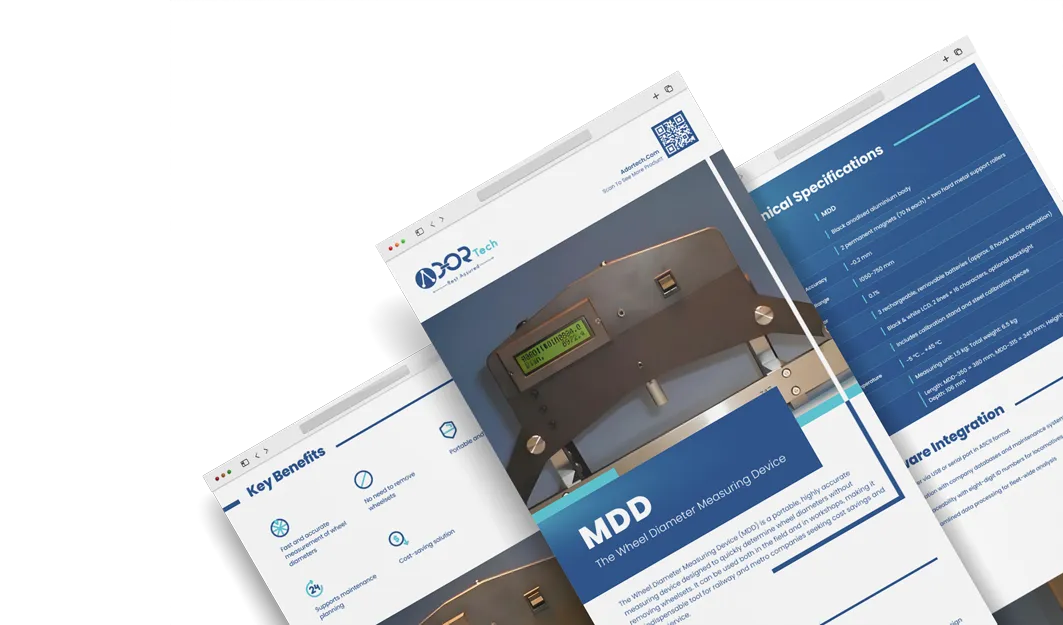

Catalog
Please fill out the form to download the catalog:
Related Products
In-Track Wheel Measuring System
Integrated into the track
Wheel Profile Measuring Device
Mobile Device

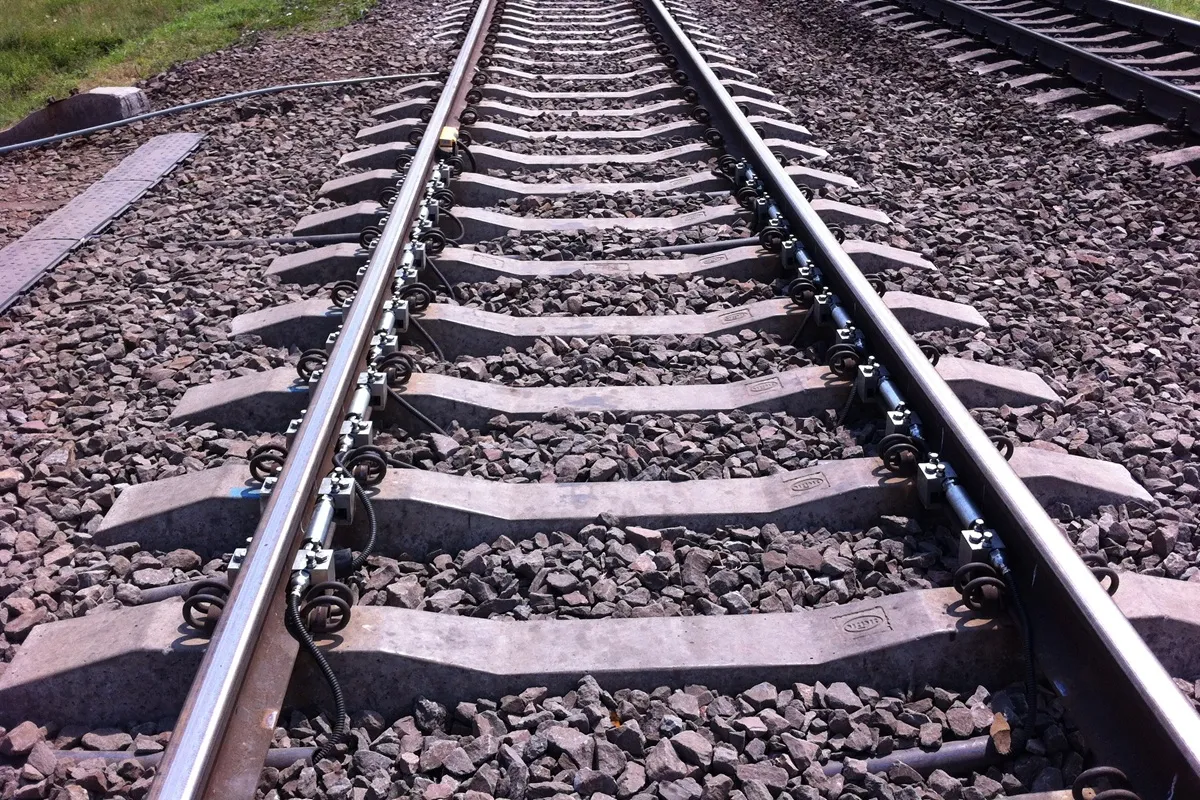

Wheel Force Diagnostic System
Installed in the track without any changes
Eddy Current Flaw Detectors
Mechanized scanning device
FAQS
The Complete Guide to Wheel Diameter Measuring Devices for Railways
Maintaining accurate wheel dimensions is essential to safe, efficient railway operation. Among the most critical parameters in wheelset diagnostics is wheel diameter—an imbalance between left and right wheels can result in uneven wear, steering misalignment, bogie instability, and even derailment risks.
To address this, railway professionals rely on a wheel diameter measuring device, a tool specifically engineered to provide fast, accurate, and consistent diameter readings. Whether used on locomotives, freight cars, or metro systems, this tool plays a vital role in preventive maintenance, regulatory compliance, and cost reduction.
In this blog, we’ll break down how these devices work, why they’re important, and how to choose the right solution for your rolling stock operations.
What Is a Wheel Diameter Measuring Device?
A wheel diameter measuring device is a contact-based tool designed to determine the diameter of train wheels directly on the vehicle, without removing the wheelset. This is crucial in reducing downtime and ensuring real-time operational monitoring.

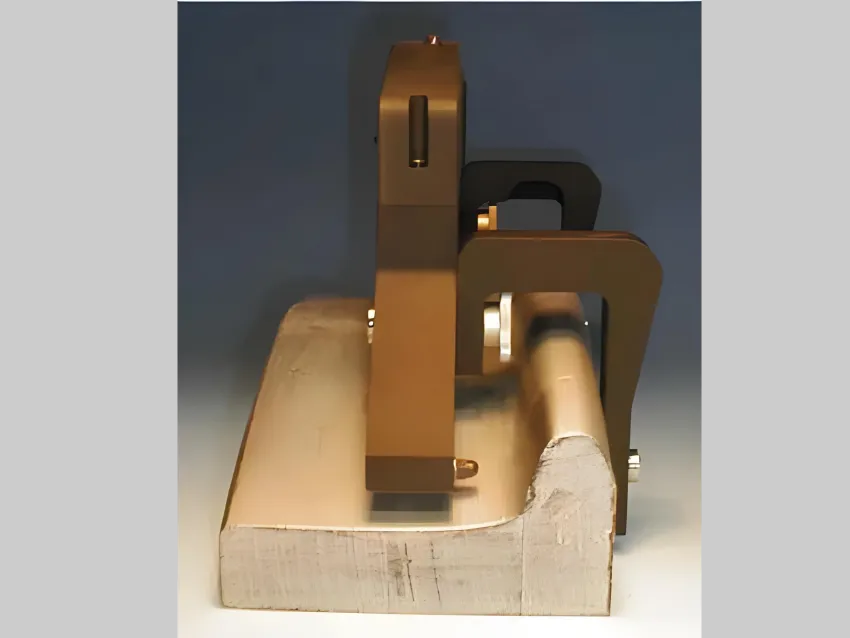

ADOR’s model, for example, is a manual wheel diameter measurement tool that attaches to the wheel using permanent magnets. It performs a three-point measurement using two fixed rollers and one inductive position transducer to calculate the precise diameter. Results are displayed instantly on a daylight-readable LCD screen and stored in the internal memory for further analysis.
How Does a Railway Wheel Diameter Gauge Work?
A railway wheel diameter gauge typically operates on a three-point contact principle:
- Two fixed rollers rest against the wheel tread.
- A third point uses a transducer to detect deflection and calculate the diameter.
- The measurement is shown digitally, with accuracy typically within ± 0.2 mm.
This manual method is extremely reliable and has been field-proven in both workshops and outdoor environments. Unlike non-contact laser-based systems, this contact wheel diameter measuring system ensures consistency even in dirty or low-light conditions.
Why Is Train Wheel Diameter Measurement Important?
Unequal wheel diameters on the same axle cause:
- Skewed bogie alignment
- Accelerated flange and rail wear
- Increased vibration and noise
- Reduced braking efficiency
- Higher derailment risk
By using a train wheel diameter measurement device routinely, maintenance teams can:
- Detect early-stage wheel wear
- Track uneven diameter differences
- Plan timely reprofiling and replacements
- Improve ride quality and safety
- Reduce life-cycle costs
Key Features of a Manual Wheel Diameter Measurement Tool
- Portable and lightweight (approx. 1.5 kg)
- Measuring range: 590 mm to 1255 mm (MDD-315 and MDD-350)
- Battery-powered (8-hour operation)
- USB output for easy data transfer
- LCD display is visible in all lighting
- Memory storage for up to 1800 measurements
This makes it ideal for:
- Workshop diagnostics
- Depot entry/exit checks
- Field verification after maintenance
- Metro and tramway wheelset assessments
How to Choose the Right Wheel Diameter Measuring Device
When selecting a measurement tool, consider:
- Vehicle type (freight, metro, tram, locomotive)
- Measuring range required
- Portability needs
- Data storage or integration requirements
- Environmental conditions (dust, low light, extreme temperatures)
A robust, contact wheel diameter measuring system like ADOR’s is best for operators who want simplicity, durability, and accuracy without requiring specialized training or infrastructure.
Conclusion
A wheel diameter measuring device is one of the most cost-effective investments for any rail operator focused on safety, reliability, and cost control. With options like the ADOR MDD series, you get a field-tested, easy-to-use tool that delivers fast and precise results, wherever your railcars may be.
Whether you’re performing compliance checks or preventive diagnostics, a manual wheel diameter gauge gives your team the confidence to detect issues early and maintain smoother, safer journeys ahead.
