Type 3 Silt Curtains: Applications and Specifications
Effective sediment control is crucial for preserving water quality and minimizing environmental impacts during marine and construction projects. Among the most reliable solutions for sediment containment are Type 3 silt curtains. Specifically engineered for demanding environments, these curtains are essential for controlling sediment spread in open waters, harbors, ports, and other high-energy areas with moderate waves and tidal activity.
This blog post will provide a comprehensive guide to understanding Type 3 silt curtains, specifications, and key applications. We'll delve into the details of the materials used, including the durable skirts, effective ballast systems, and innovative no-gap panel connections that make these barriers stand out. You'll also learn about the ranges available—such as the Green, Premium, and Standard models—and how they cater to varied project needs.
Furthermore, we'll explore the step-by-step installation process, essential maintenance practices to maximize their lifespan, and critical safety measures to ensure compliance with environmental standards. We'll also discuss cost considerations and key benefits, such as enhanced sediment control and durability in harsh conditions.
See our range of silt curtains and their technical specifications here.
Explore the key sections in this article:
What is a Type 3 Silt Curtain?
A Type 3 silt curtain, or a Type 3 turbidity curtain, is a floating barrier specifically designed for sediment control in high-energy environments. Unlike lighter-duty options, Type 3 silt curtains are built for challenging conditions such as open waters, harbors, and locations with moderate waves, frequent whitecaps, and significant tidal fluctuations. These curtains are essential for preventing the spread of suspended particles and maintaining water quality during marine construction, dredging, or environmental restoration projects.

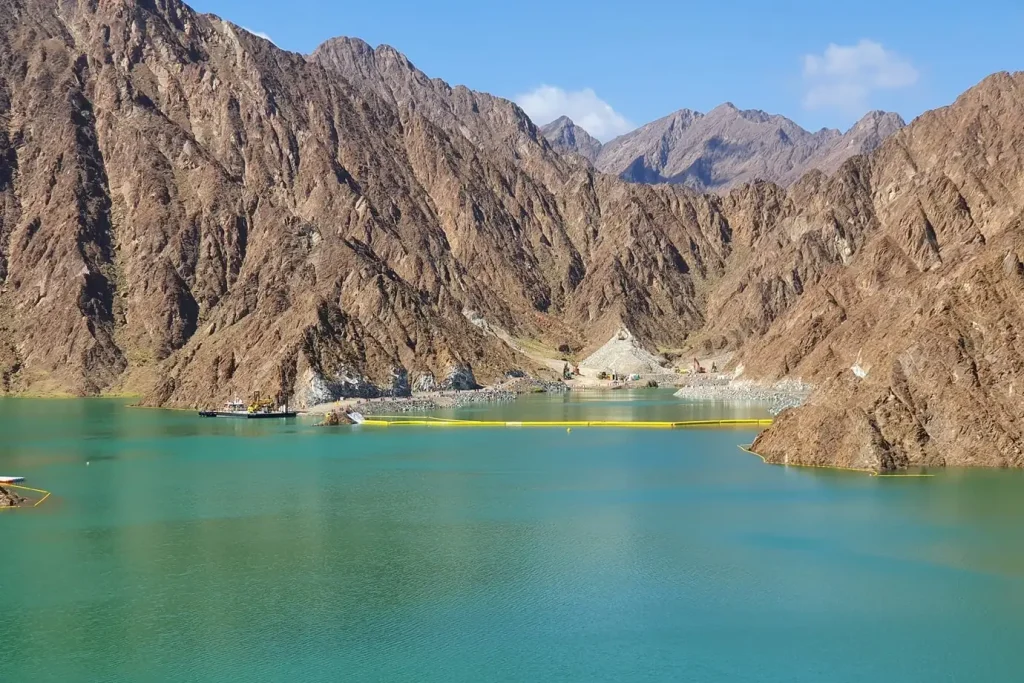

See also: [Type 1 Silt Curtains]
Key Features of Type 3 Turbidity Curtain
1- Heavy-Duty Construction: Type 3 silt barrier feature robust materials, including high-tensile strength geotextile skirts and durable flotation systems. These components ensure they can withstand environmental stressors like strong currents and waves.
2- Flotation and Stability:
Equipped with advanced EPS floats, these barriers maintain buoyancy even in rough conditions. The floats are often paired with weighted ballast chains to keep the skirt taut and positioned effectively in the water column.
3- No-Gap Panel Connections:
One defining characteristic of ADORTECH's Type 3 silt curtains is their gapless panel connection system. This design minimizes sediment leakage and ensures seamless functionality across long deployments.
4- Adaptability to Depths and Conditions:
Depending on site conditions, these barriers are customizable for depths ranging from 0.5 to 30 meters and can be configured with various ballast weights and anchoring systems.
Purpose and Functionality
The primary role of a Type 3 silt curtain is to contain and control suspended sediment generated during activities such as pile driving, dredging, or shoreline development. By confining these sediments, the curtain prevents them from dispersing into nearby ecosystems, protecting aquatic habitats and adhering to environmental regulations.
Why Choose Type 3?
Compared to lighter-duty Type 1 or 2 curtains, Type 3 silt curtains are the go-to solution for projects in turbulent environments. Their durability, superior materials, and adaptability make them indispensable for contractors requiring reliable sediment control in open waters.
See also: [Choosing the Right Silt Curtains]
Key Applications of Type 3 Silt Curtains
Type 3 silt curtains are engineered for high-energy environments, making them indispensable in numerous marine and construction applications. These robust barriers provide effective sediment control in challenging conditions such as strong currents, moderate waves, and tidal zones. Below are the key applications where these curtains are commonly used:
1- Marine Construction Projects
Type 3 marine silt curtains are vital during marine construction activities like bridge building, harbor expansion, and port development. These curtains prevent disturbed sediment from spreading to nearby waters, reducing the environmental impact on aquatic habitats and maintaining water quality.
2- Dredging Operations
Dredging activities generate large amounts of sediment that can easily disperse into surrounding water bodies. By deploying a Type 3 turbidity barrier, contractors can confine these sediments to a specific area, ensuring compliance with environmental regulations and protecting marine ecosystems.
3- Shoreline and Coastal Restoration
In projects that restore or stabilize shorelines, Type 3 silt barriers play a crucial role in sediment containment. They minimize turbidity caused by construction, preserving the integrity of the coastal environment and preventing sediment runoff into adjacent waters.
4- Piling and Excavation Works
Piling activities in deep-sea locations or nearshore zones disturb the seabed and release sediments. Type 3 floating silt curtains help contain this disruption, ensuring sediments do not spread beyond the construction site.
5- Environmental Protection and Monitoring
Type 3 turbidity barriers are also used in projects with strict environmental oversight, such as those near coral reefs, marine reserves, or sensitive habitats. They act as a shield to prevent sediment intrusion into these protected areas.
Specifications of ADORTECH's Type 3 Silt Curtains
ADORTECH's Type 3 silt curtains are engineered to meet the demands of high-energy environments such as ports, harbors, and open waters. Their construction reflects the highest durability, efficiency, and adaptability standards, ensuring reliable sediment control in challenging conditions. Below, we explore the detailed specifications and features that make these barriers stand out.
Materials and Construction
a- Skirt Material:
The skirt, the underwater portion of the curtain, is made from high-tensile geotextile fabric with a tensile strength of 150x150 kN/m. This robust material prevents tearing and ensures long-lasting performance in rough conditions.
b- Floats:
Each curtain includes high-buoyancy EPS (Expanded Polystyrene) floats with a 71 kg/m buoyancy. These floats maintain the curtain's stability even in areas with frequent whitecaps or moderate waves. Depending on the model, their density ranges between 22 and 46 kg/m³.
c- Ballast System:
The ballast system uses weights ranging from 3.1 kg/m to 13.1 kg/m to keep the skirt taut and secure in the water column. This ensures that the barrier effectively controls sediment dispersion.
d- Connections:
The panels are joined using a proprietary no-gap panel connection system. These connections eliminate the risk of sediment leakage between sections and make installation more efficient.
Dimensions and Configurations
a- Panel Lengths:
Panels are available in lengths of up to 25 meters, allowing flexibility in creating the desired coverage for any project site.
b- Depth Range:
The curtains can be customized to accommodate depths from 0.5 to 30 meters. This adaptability makes them suitable for various underwater conditions.
c- Freeboard and Draft:
The standard freeboard is 300 mm, and the draft (the submerged part of the skirt) varies based on project requirements.
Product Variants
ADORTECH offers three distinct ranges within its Type 3 silt curtains:
- Green Range: Designed for moderate waves and environmentally sensitive projects.
- Premium Range: Enhanced for high durability and challenging conditions.
- Standard Range: Versatile and cost-effective for general applications.
See also: [Type 2 Silt Curtains]
Anchoring System
ADORTECH's curtains are compatible with recommended anchoring systems such as System II and System III. These systems ensure the barrier remains securely positioned even under significant tidal or wave forces. Anchor points have a minimum pullout force of 50 kN, guaranteeing reliable performance.
Customization and Add-Ons
- Modular Skirts: The curtains can be tapered or customized for unique site requirements.
- Reflective Strips: Improve visibility for safe navigation in busy marine areas.
- Demarcation Lighting: Optional lighting for nighttime operations or demarcation in high-traffic zonescan be added.
Compliance and Durability
ADORTECH's Type 3 silt curtains are designed in compliance with international standards, including the International Recommended Practice for Design, Development, and Operation of Silt Curtains (RPSC-23). The products undergo rigorous testing to meet demands from the high-energy environment.
Environmental Impact
The eco-friendly curtains prevent sediment intrusion into protected marine habitats, helping contractors meet environmental regulations. This makes them an essential choice for projects near coral reefs, seagrass beds, and other sensitive ecosystems.
Why Do ADORTECH's Type 3 Silt Curtains Stand Out?
The specifications of ADORTECH's Type 3 silt curtains underscore their focus on reliability, efficiency, and adaptability. With advanced materials, robust anchoring systems, and customizable designs, these barriers provide unparalleled sediment control in challenging conditions. Whether for dredging, marine construction, or environmental restoration, ADORTECH's range ensures your project remains compliant and environmentally responsible.
How to Install a Type 3 Silt Curtain
Installing a Type 3 silt curtain requires careful preparation, attention to detail, and adherence to proper procedures to ensure effective sediment control. Below is a step-by-step guide based on the provided files and industry best practices.
1- Pre-Installation Preparation
a- Site Assessment: Conduct a thorough site assessment to determine environmental factors like currents, wave activity, and tidal patterns. This helps select the appropriate curtain depth, ballast weight, and anchoring system.
b- Tools and Materials: Ensure all necessary tools—such as spanners, shackles, and anchors—are available along with the curtain components, including floats, ballast chains, and panel connections.
c- Laydown Area: Choose a flat, accessible area near the deployment site for unpacking and assembling the curtain panels.
2- Curtain Assembly
a- Panel Connection: Connect the curtain panels on the ground using ADORTECH's no-gap shackle system. Ensure the connections are secure to prevent sediment leakage during deployment.
b- Float Installation: Insert floats into the pre-joined float pockets, ensuring proper alignment and even distribution.
c- Ballast Chain Attachment: Use the provided shackles to attach the ballast chain along the bottom of the curtain skirt. This ensures the skirt remains submerged and stable.
3- Deployment Procedure
a- Anchor Points: Pre-arrange anchor points onshore or offshore using driven posts, concrete blocks, or marine anchors. These secure the curtain and prevent drift.
b- Towing and Placement: Slowly tow the assembled curtain into position using a workboat at 1 knot or less. Avoid sudden acceleration to minimize stress on the curtain.
c- Anchoring and Unfurling: Secure the curtain with anchors and unfurl it by releasing the straps. Divers may assist in ensuring proper positioning and deployment.
See also: [How to Install Turbidity Curtains]
Benefits of Using Type 3 Turbidity Barriers
Type 3 turbidity barriers offer a range of benefits that make them indispensable in marine and construction projects. These barriers are designed to excel in challenging environments, such as open waters, harbors, and areas with significant wave and tidal activity. Below are the key advantages of using these robust sediment control solutions:
Environmental Protection
The primary function of a Type 3 floating turbidity curtain is to contain sediment within a designated area, preventing it from dispersing into surrounding waters. This helps protect aquatic habitats such as coral reefs, seagrass beds, and marine reserves. By minimizing turbidity, these barriers ensure water quality is maintained, benefiting both marine life and nearby communities.
Regulatory Compliance
Governments and environmental agencies often impose strict sediment control requirements on marine and dredging projects. Deploying Type 3 marine silt curtains ensures compliance with these regulations, avoiding costly fines and project delays. Using high-performance barriers like ADORTECH’s range demonstrates a commitment to environmental stewardship.
Durability in Challenging Conditions
Built with high-tensile geotextile skirts and buoyant floats, these barriers are designed to withstand rough waters, moderate waves, and frequent whitecaps. Their heavy-duty construction ensures long-lasting performance even in the most demanding settings.
Adaptability to Project Needs
With customizable depths (up to 30 meters), modular panel lengths, and adjustable ballast weights, Type 3 silt barriers can be tailored to suit specific project requirements. This flexibility makes them suitable for various applications, from dredging to shoreline restoration.
Improved Project Efficiency
By effectively containing sediment, Type 3 turbidity barriers streamline operations and reduce the need for extensive cleanup efforts. This leads to significant time and cost savings for contractors.
Conclusion
Type 3 silt curtains are essential for maintaining water quality and protecting aquatic ecosystems in high-energy environments. Specifically engineered to handle moderate waves, tidal forces, and challenging marine conditions, these robust barriers provide reliable sediment control in diverse applications such as dredging, shoreline restoration, and marine construction projects.
ADORTECH’s range of Type 3 silt curtains stands out due to their advanced materials, high-tensile geotextile skirts, customizable ballast systems, and innovative no-gap panel connections. Designed for flexibility, they accommodate various depths and site conditions, ensuring adaptability to project-specific requirements. Furthermore, the adherence to international environmental standards and the focus on durability make them a trusted choice for contractors aiming to meet regulatory demands while safeguarding ecosystems.
Whether minimizing sediment dispersion during dredging or maintaining clear water near sensitive habitats like coral reefs, these barriers offer unparalleled efficiency. They prevent ecological damage and streamline project timelines by reducing the need for extensive cleanup, contributing to significant cost savings.
