Keep the marinas safe for navigation with Navigation Buoy.

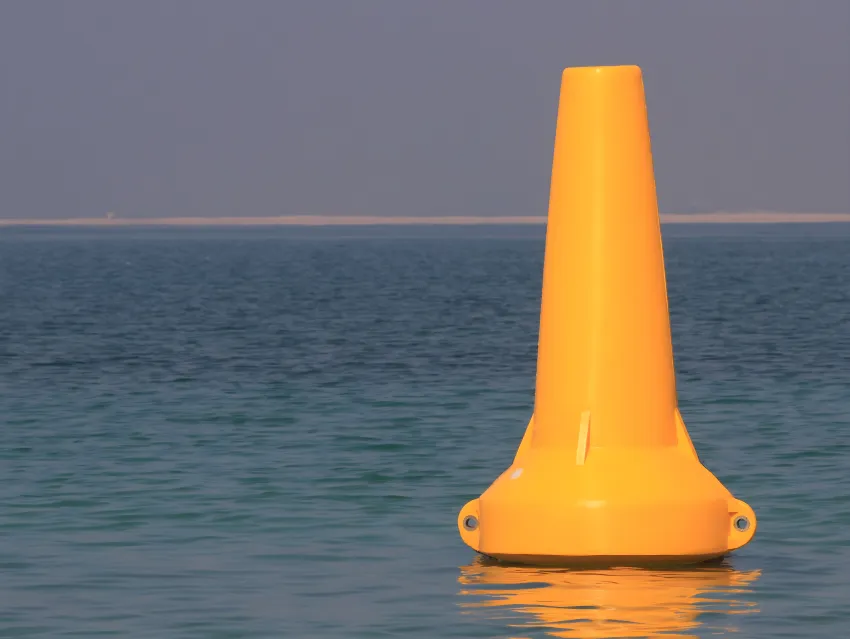

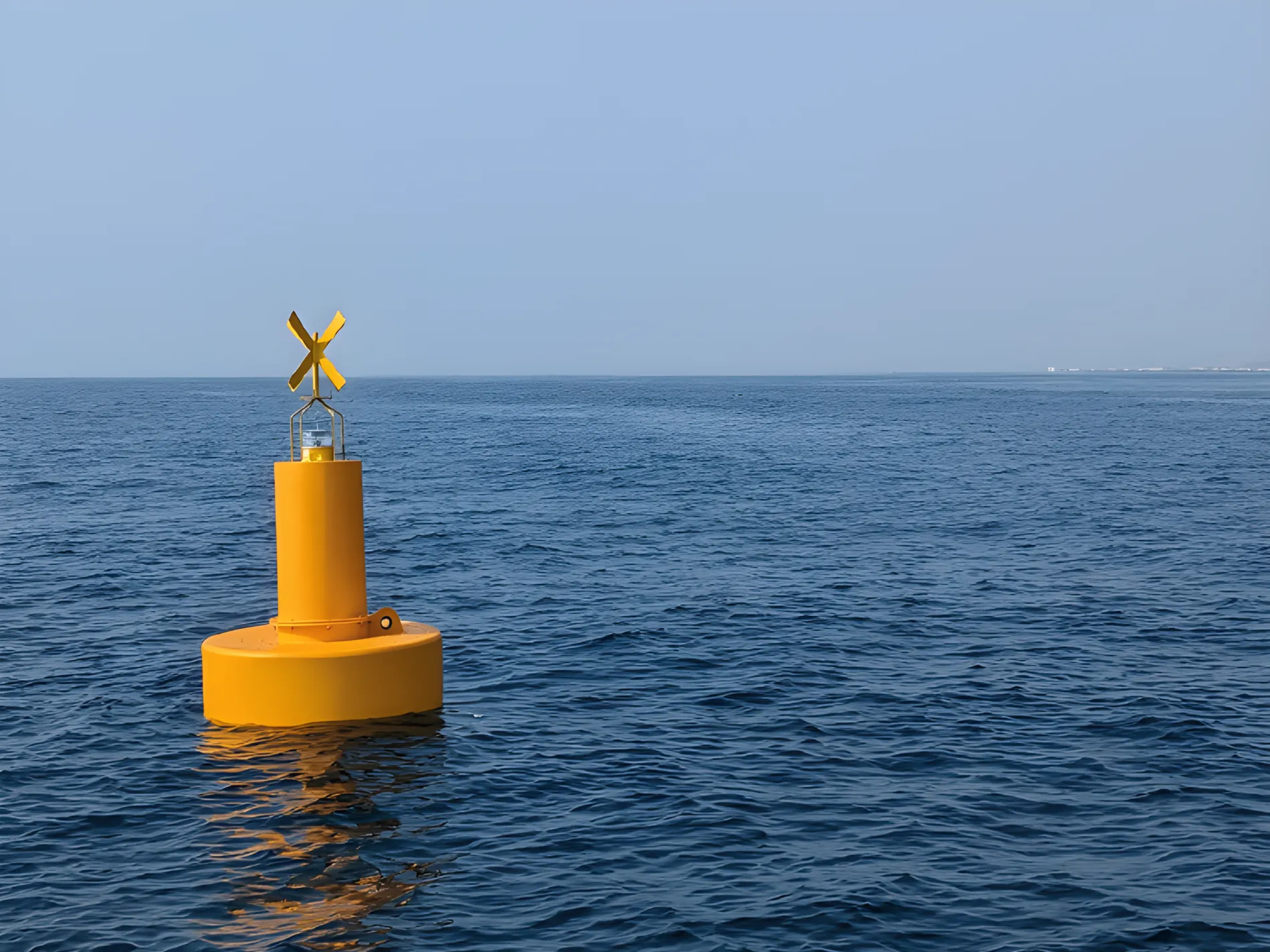

Navigation buoy is an Aids to Navigation (AtoN) type of marine buoy that provides safe and reliable guidance for vessels and navigators across inshore, nearshore, and offshore waters. Built to withstand harsh weather and tidal forces, floating navigation buoy is engineered for exceptional buoyancy, visibility, and durability.

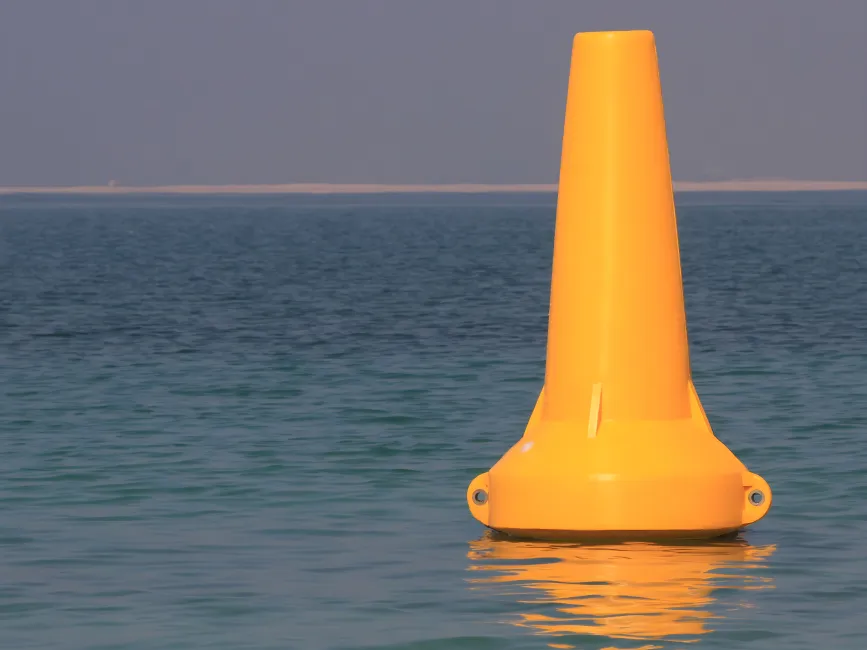

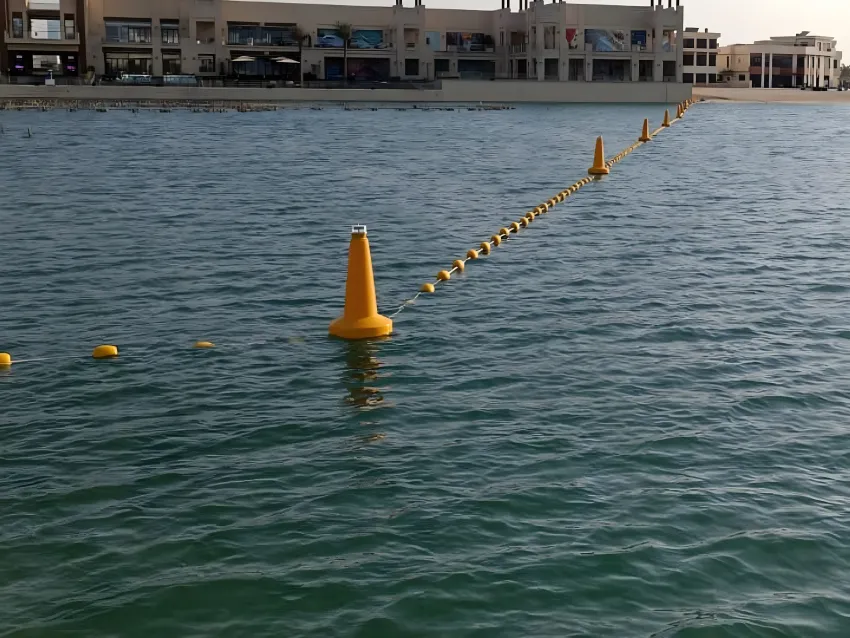

Demarcation buoy for clear boundaries.
Guiding vessels safe and confident
Technical Specifications |
ENB400 | ENB700 | ENB1200 | ENB1500 |
|---|---|---|---|---|
| Visibility Range | 0.12 m2 | 0.4 m2 | 1.25 m2 | 2.25 m2 |
| Operational Buoyancy | 10 kg | 60 kg | 490 kg | 420 kg |
| Total Weight | 4.5 kg | 35 kg | 110 kg | 200 kg |
| Max. Mooring Weight | 10 kg | 60 kg | 250 kg | 420 kg |
| Max. Water Depth | 5 m | 10 m | 30 m | 45 m |
| Datasheet | Datasheet | Datasheet | Datasheet |

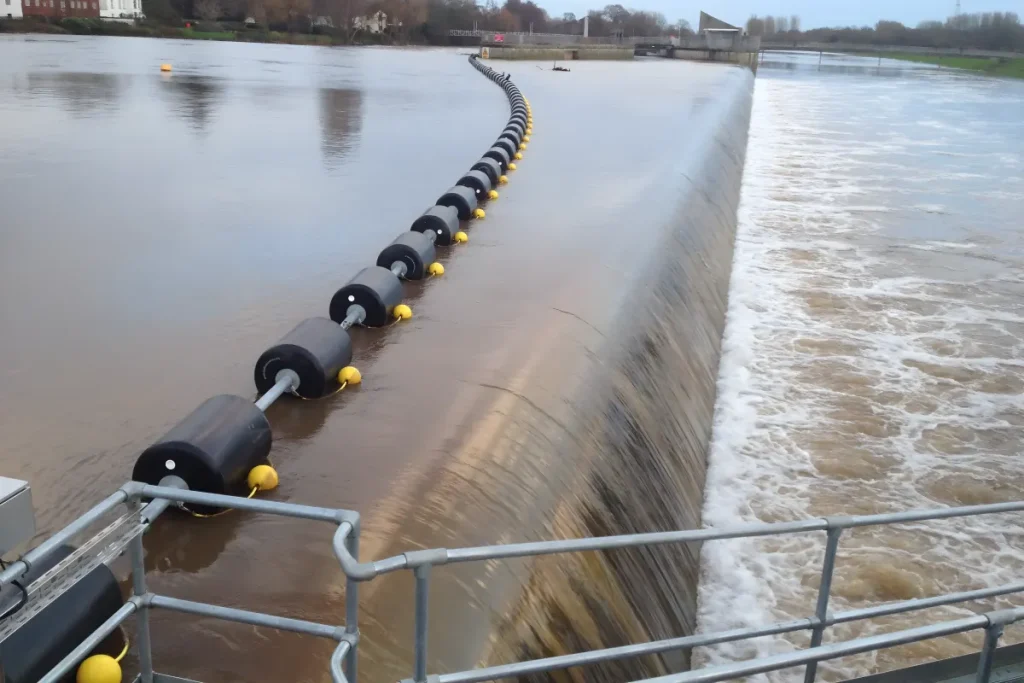

Our partnerships include companies specializing in marine barriers for environmental, safety, and security purposes. Together, we are committed to setting new standards in the railway and marine industries, driving progress, and delivering exceptional value to our customers.

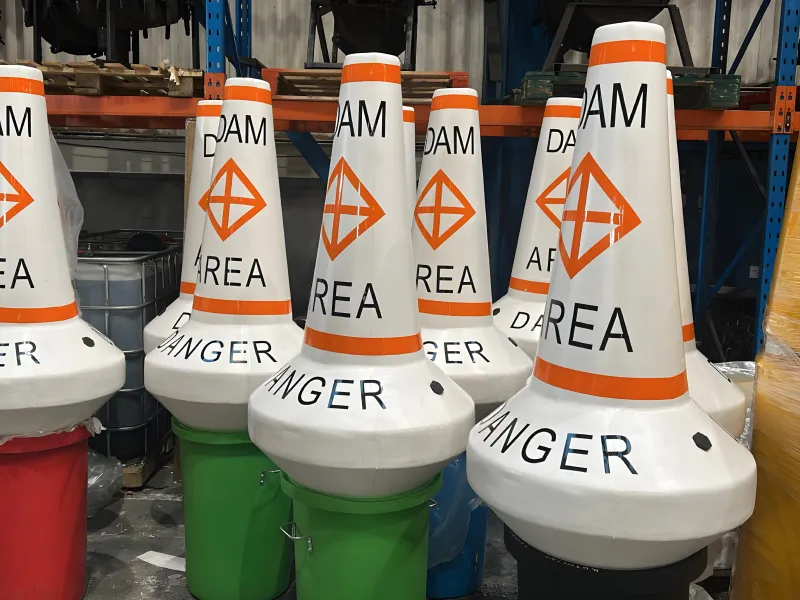

In order to provide public safety around the equipment and construction of Newfoundland power dam, we delivered demarcation buoys, customized in color and signage for more visibility.

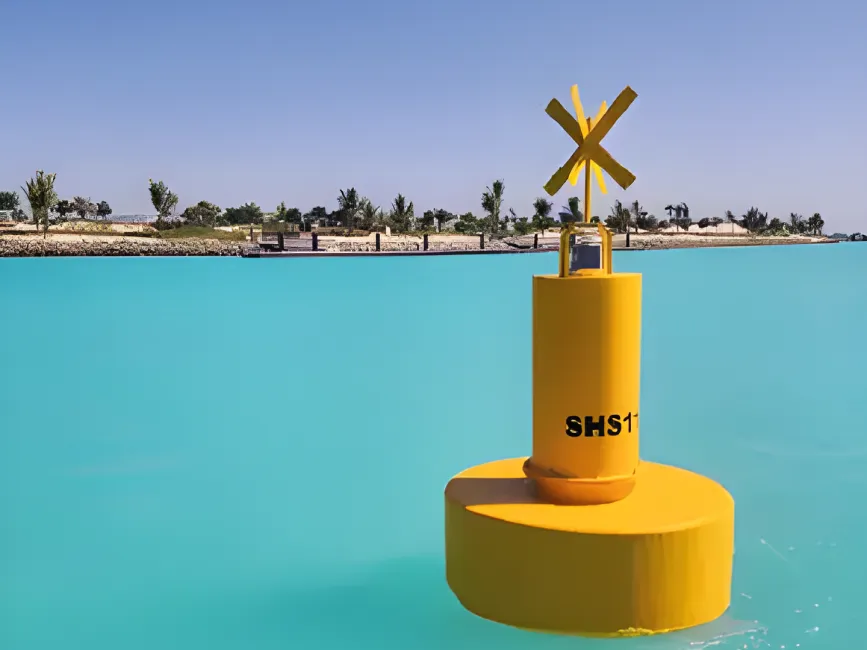

Yes. Floating navigation buoy or demarcation buoy can be designed and customized with a wide range of top marks based on the project’s demands.
The price of navigation buoy for sale highly depends on its design and customizability range. Get a quote to find out the exact costs for your project.
Marine navigation buoy can efficiently and reliably operate in waters with short to moderate wave exposure and moderate to strong tidal flows.
Yes. All models of demarcation buoy are engineered UV-stabilized to offer high durability, even under direct sunlight.

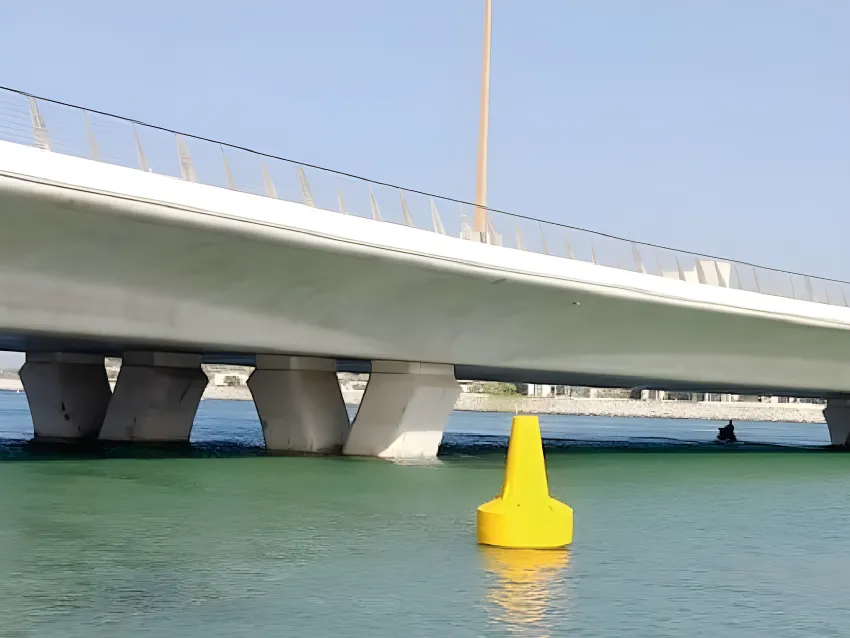

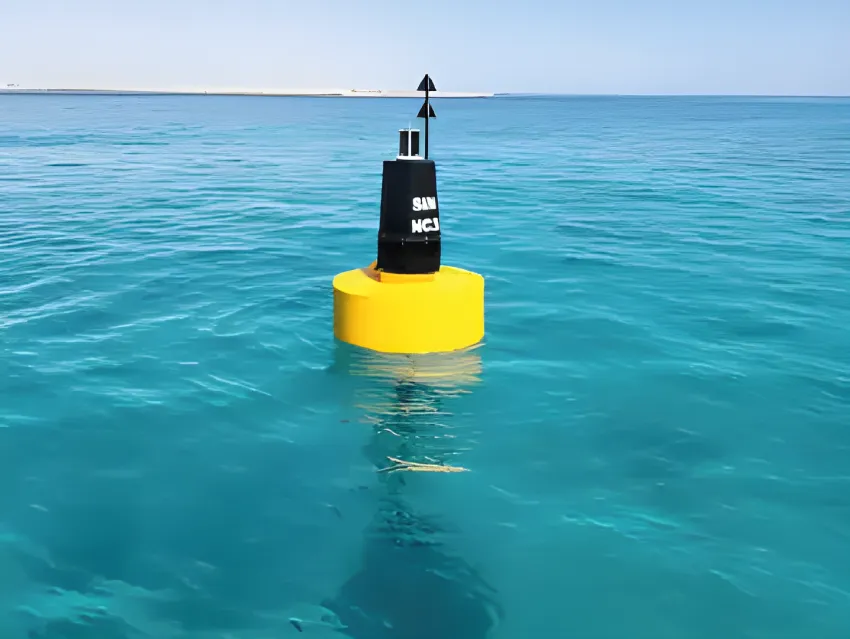

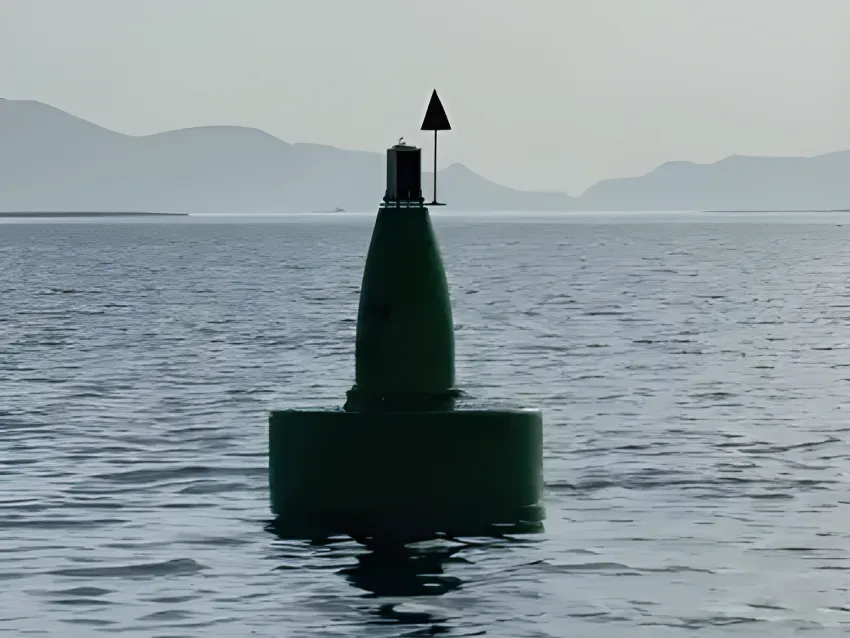

Navigation buoy, also known as demarcation buoy, is floating devices used to mark the navigation zones in marinas, acting as Aids to Navigation (AtoN) tool. Provided based on IALA standards, marine navigation buoy can easily specify the entry and exit in ports or marking the danger or areas where navigation is not allowed. Relying on IALA regional standards, each floating navigation buoy is provided with defined color and top mark to guide navigators or vessels.
Floating navigation buoy plays a crucial role in navigation systems and if no demarcation buoy is used, extremely hazardous accidents can occur. Therefore, durability of navigation buoy is one of the most important features that should be noticed while choosing one. designed with rotationally molded virgin Polyethylene structure filled with closed-cell Polyethylene foam, marine navigation buoy offers high durability and resistance in all-weather conditions. Anchored with a concrete ballast to the seabed, navigation buoy provides safer marinas.
Navigation buoy manufacturers mostly offer ready-to-install floating navigation buoy for each application. But not two projects need the same solution, even the challenges are equal. To address the project’s challenges, navigation buoy is provided with a wide range of customizable options, such as colors, top marks, reflectors, and marine lanterns. Therefore, the operational safety and reliability of marine navigation buoy is guaranteed by designing it from scratch based on the project’s specifications and demands.
